SKU: Dobinsons-CSLS-C1903-S032

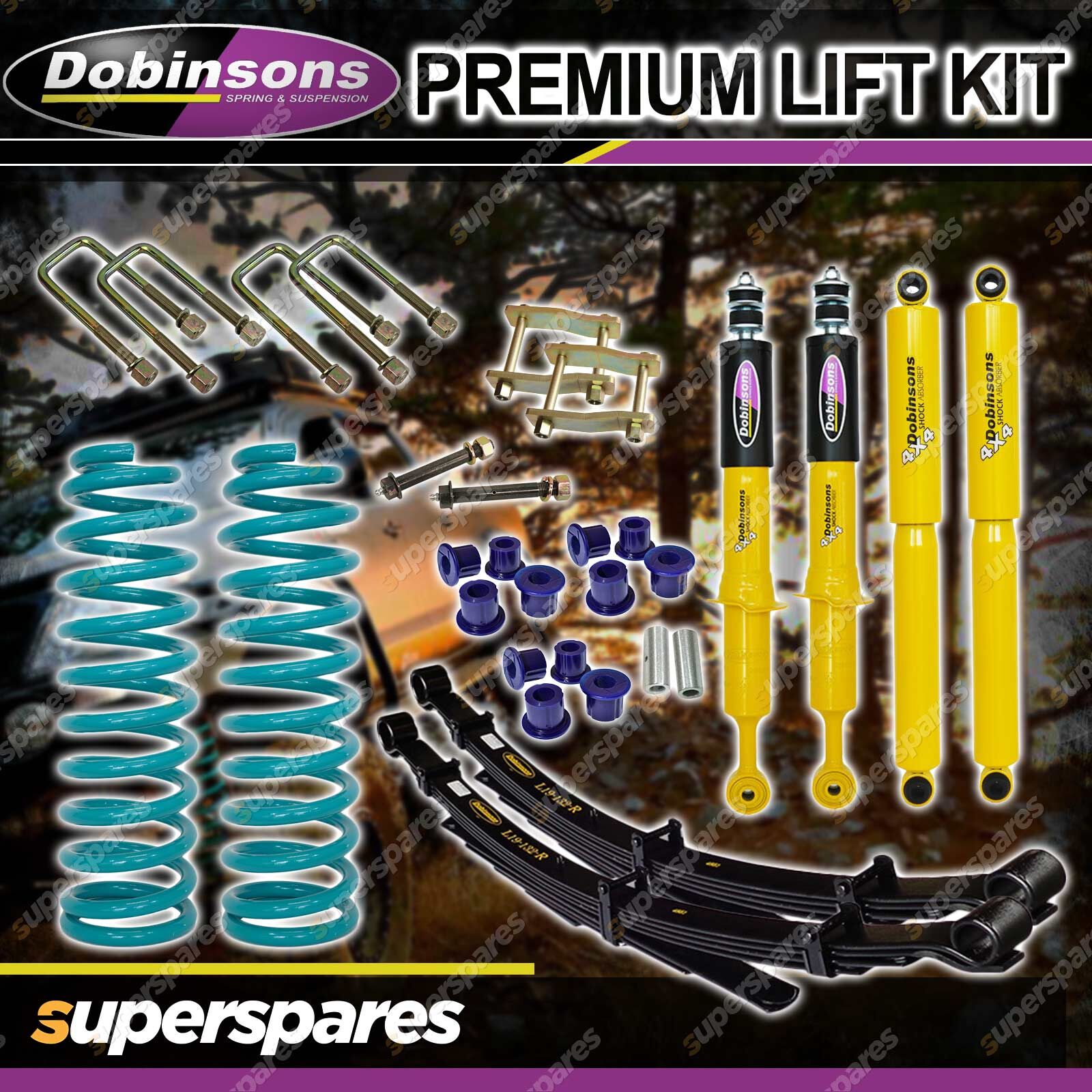

Dobinsons 2 Inch 50mm Shocks Coil Leaf Lift Kit for Foton Tunland Single Cab

RRP $2,061.54
SAVE $343.59 (17%)

More info.

Make 4 payments of $429.49 over 8 weeks and get it now!

In Stock

Calculate Shipping

Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Local Pickup - $0.00
Pickup from Sydney Warehouse


Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

FRONT Dobinsons Shock Absorber2Heavy Duty Twin Tube Gasbuy separately
FRONT Dobinsons Medium Duty Coil Spring2Without Accessoriesbuy separately
REAR Dobinsons Shock Absorber 2 Heavy Duty Twin Tube Gas Medium Load buy separately
REAR Dobinsons Medium Duty Leaf Spring + U Bolt + Bush2Up to 100Kg Constant Loadbuy separately
REAR Dobinsons Shackle + Pin1buy separately

Foton Tunland Single Cab 2012 on
Detail : 4x4


Available Upgrade & Options:

FRONT Heavy Duty Coil springs(50-100Kg With Bullbar AND Winch) 2 +40 Pair
REAR Heavy Duty Leaf springs(280Kg Constant Load) 2 +80 Pair
REAR Extra Heavy Duty Leaf springs(450Kg Constant Load) 2 +120 Pair
Note: Lift Height depend on combined accessories' weight on the vehicle


Dobinsons Twin Tube Nitrogen Gas charged shock absorbers are made from the world's highestquality external and internal parts sourced worldwide. They provide a significant increase inperformance over the standard shock absorbers.

Features Include:

  • Tough twin tube design has the benefit of holding larger volume of oil (keeping the internal workings cooler) and improved protection of internal working components
  • Low pressure nitrogen gas which eliminates aeration within the oil reservoir, meaning no bouncing, sloppiness nor deterioration of ride
  • Teflonned piston rings produce less wear and heat to the bore and increase the life of the shock absorber
  • Special anti-bump stops preserve the piston from extreme impacts when fitted to vehicles with coil spring suspension systems
  • Valve coding maximises off-road and on-road performance
  • Valve stacking system controls dampening laws and permits a record response time in any situation, enhancing safely and comfort
  • Polyurethane paint, gives extended life against the elements
  • have a 2 year warranty


Dobinsons manufacture after market Coil Springs to restore the ride height with our improved Design Coils. In most cases, the coil is 20% - 40% stronger than the original OEM Spring.

This gives better Load Carrying capacity for Heavy Loads and enhances Road Handling while also improving towing capacities.

Features Include:

  • Dobinsons computers have a design that allows the spring to maximise what is expected of the spring
  • The powder coat finish is baked on to give a lasting protective coat to help eliminate rust.
  • Each coil is precisely placed by a programmable logic computer to achieve perfect pitch. This is very important in Variable and Progressive Rate Springs.
  • All coils are scragged 100% to eliminate subsequent spring sag and load tested to ensure that they meet and maintain the required specifications.
  • Engineered Coil Ends are designed to fit the vehicle correctly.
  • Coils are shot peened to give longer life.
  • State of the Art Heat Treatment
  • have a 2 year warranty


With over 60 years of experience manufacturing in Australia, Dobinsons Spring & Suspensionare no strangers to providing the highest quality spring and suspension components, and ourrange of leaf springs are no exception.

Dobinsons Leaf Springs Feature Include:

  • Stringent quality control procedures for Heat Treatment (Tempering) processes at all phases of the manufacturing processes ensures Dobinsons Springs are made the same exceptional way every time.
  • All leaf lengths are designed and calculated to achieve High Performance spring. Inappropriate leaf lengths will concentrate stress in one particular area and will cause premature sagging or breaking.
  • To assist in Load Distribution and reduce Inter Leaf Friction which occurs at the end of the leaves.
  • Where possible, a Military Wrapper is used as a safety mechanism to aid the vehicle's steering in the case of the main leaf breaking.
  • Scragging is a process where the spring is load tested to 90% of the Yield Stress of the material used. This process helps to relieve and prevent sagging.
  • Reduce friction at the tip of the leaves where the Load is greatest in the spring.


Dobinsons 4x4 U-bolts are made from high quality, 10.9 gradehigh tensile steel and supplied with hardened deep nuts formaximum clamping pressure and reliability. It is recommendedthat when replacing leaf springs that new u-bolts are fitted.

Supplied in anti corrosion zinc finish.


Dobinsons Spring and Suspension's polyurethane bushes havebeen designed and manufactured from the highest quality rawmaterials and unlike other competitors have been designed tosuit both Dobinsons leaf springs and the original vehicle leafsprings.

Polyurethane-BushesDobinsons Polyurethane leaf springbushes provide a smooth comfortable ride and when combinedwith Dobinsons 4x4 greasable shackles provide a far superiorservice life than the original vehicle bushes.


Dobinsons Spring & Suspension's range of 4wd shacklesand pins offer have been designed and manufactured tomaximize the life of both the polyurethane bushes andshackles. Incorporating a recessed twin hole greasable designthe ensure both halves of the polyurethane bush receiveeven grease distribution. Greasing polyurethane bushes notonly reduces friction and wear, it also reduces the chancesof corrosion on the shackle pins and reduces squeaking.

Dobinsons 4wd shackles and pins are a heavy duty design andprovide simple servicing through external grease nipples.

In some cases Dobinsons also provide anti-inverse shacklesto prevent the shackles from inverting on lifted leaf springvehicles.




SKU Dobinsons-CSLS-C1903-S032
