Contents : 1 x ACL Rod Bearing Set
Item For 0.25mm Size
Brand : ACL
Suit :
BMW 1 Series F20 2 Series F22 F23 F87 3 Series F30 F80 G20 4 Series F32 F33 F36 F82 F83 5 Series F90 G30 6 Series G32 7 Series G11 G12 X3 F97 G01 X4 F98 G02 X5 F95 G05 B58B30 2998cc Turbo Inline 6 2015-On

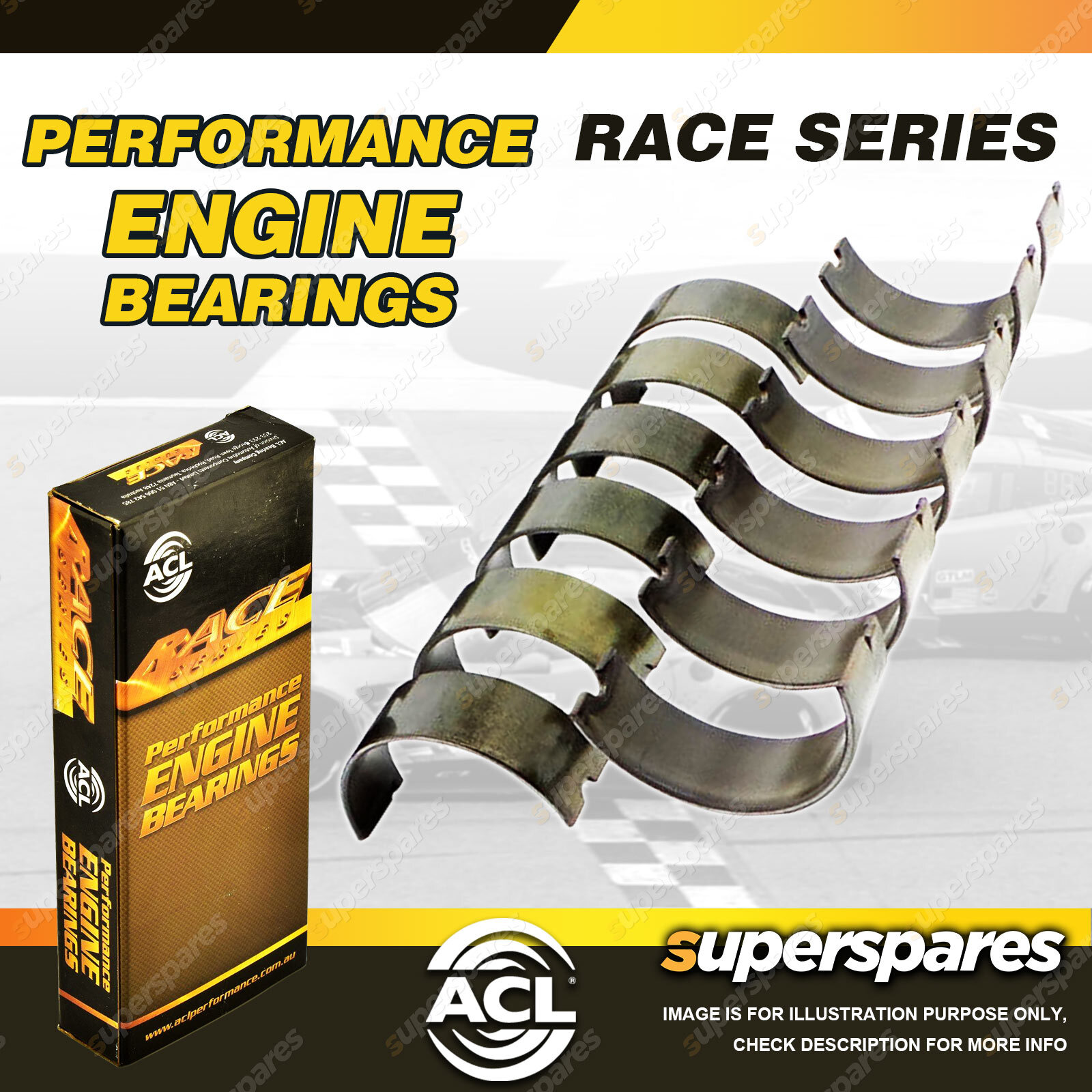

ACL Race Series performance engine bearings are manufactured to exacting tolerances. Micron tolerance machining supported by precision measurement systems delivers consistent accuracy to key characteristics like wall thickness and crush. This ensures reliable fit and helps maintain consistent clearances. |
1.Bearing Material Enhancements A blend of characteristics to provide high strength and excellent seizure resistance. No flash plating is applied to further improve bearing retention and maximise heat transfer. |
2.Bearing Design Enhancements Crush increased for: Improved bearing retention from higher radial contact pressure. Locks the bearing into the housing. More effective heat dissipation through improved thermal transfer. Bearing Eccentricity Definition: Gradual reduction in wall thickness between the crown and parting line. ACL Race Series performance engine bearings feature increased eccentricity to increase improve shape adaptation to compensate for bore distortion at high speed operation. Assists in the formation of hydrodynamic oil film. |
Main Bearings with Extended Grooves Full (180°) grooved uppers with matching partial groove in lowers. Enlarged ID Chamfers Accommodate larger fillet radii on performance crankshafts. |
The ACL RACE Series performance engine bearing range of today has a strong pedigree in motorsport & traces, its roots back to the 1960's with the manufacture of engine bearings for use in the world conquering Brabham Formula.
Further experience in the Australian Supercars Championship & numerous other race codes has culminated in the current ACL RACE Series technology platform. The unique combination of design, metallurgy, engineering & precision quality control come together to deliver what engine builders expect from performance engine bearings.
