Aerpro Double DIN Install Kit for Landrover Discovery 4 Small OEM Basic Display

Product Description

Contents : 1x Aerpro Double DIN Install Kit

Description:

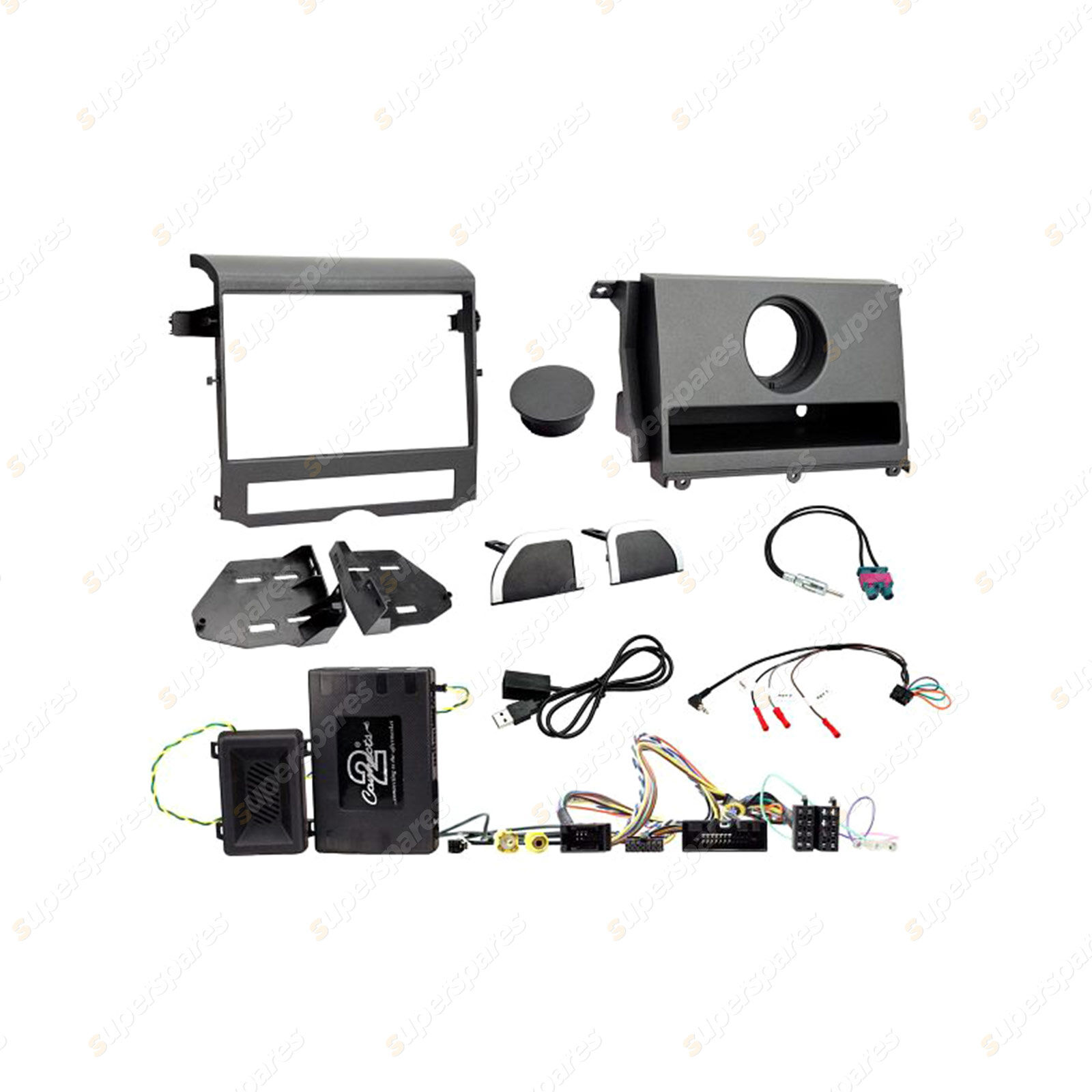

Complete a full aftermarket double din headunit installation in your Landrover Discovery 4 (2009-2016) with small OEM basic display, from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: black double din facia kit, OEM screen replacement clock relocation panel, mounting brackets, infodapter interface, USB retention lead, antenna adaptor and universal SWC patch lead. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Infodapter Interface. The kit also retains the vehicle warning / park assist functionality, OEM USB input and OEM clock.

Please Note:

Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.

Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.

Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately).

This Install Kit is suitable for Landrover Discovery 4 models with Small OEM Basic Displays.

Center bar must be cut, the vehicle can not be restored to factory configuration following this modification.

Only compatible with stereos that have a front face dimension of 178mm x 96mm.

To retain OEM USB input the aftermarket headunit requires a rear USB input.

To retain vehicle warning, park assist functionality and access to vehicle settings, the aftermarket headunit must be AV and have an AV input.

Aftermarket headunit requires a rear camera input.

To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).

Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.

Features

• The kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
• Suitable for double din aftermarket headunit installation
• High quality black finish on facia kit to suit the style of the dashboard in the vehicle
• Retains steering wheel control functionality in the vehicle including phone button
• Also retains the vehicle warning / park assist functionality, OEM USB input and OEM clock
• Suitable for vehicles with basic OEM small display
• CAN-BUS compatible, no additional modules required
• Provides output feeds for park brake, speed pulse and reverse gear
• To retain a factory fitted camera, an additional vehicle specific camera retention harness is required (sold separately)
• Fitted with a vehicle specific plug, no cutting of wires required
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)

Specifications

• APPLICATION: DOUBLE DIN
• COLOUR: BLACK
• INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
• EXTERNAL DIMENSIONS: 179mm (W) x 180mm (H)
• INCLUSIONS:
• DOUBLE DIN FACIA KIT
• OEM SCREEN REPLACEMENT CLOCK RELOCATION PANEL
• MOUNTING BRACKETS
• TRIM RING
• INFODAPTER INTERFACE
• USB RETENTION LEAD
• ANTENNA ADAPTOR
• UNIVERSAL SWC PATCH LEAD
• NOTES:
• Aftermarket headunit must be SWC compatible.
• SWC patch lead is also required to enable SWC (sold separately).
• This Install Kit is suitable for Landrover Discovery 4 models with Small OEM Basic Displays.
• Center bar must be cut, the vehicle can not be restored to factory configuration following this modification.
• Only compatible with stereos that have a front face dimension of 178mm x 96mm.
• To retain OEM USB input the aftermarket headunit requires a rear USB input.
• To retain vehicle warning, park assist functionality and access to vehicle settings, the aftermarket headunit must be AV and have an AV input.
• Please Note:
• Aftermarket headunit requires a rear camera input.
• To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
• Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
