SKU: Trupro-DDK-THR-CJ002

2" 3" 4" Lift Front 30mm Drop Diff Drop kit Direct Bolt In for Toyota Hilux Revo

$320.00
RRP $520.00
SAVE $200.00 (38%)

More info.

Make 4 payments of $80.00 over 8 weeks and get it now!

In Stock


Calculate Shipping



Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Sydney Pickup - $0.00
Pickup from Sydney Warehouse 186 Power Street Glendenning NSW 2761

Description

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Content:

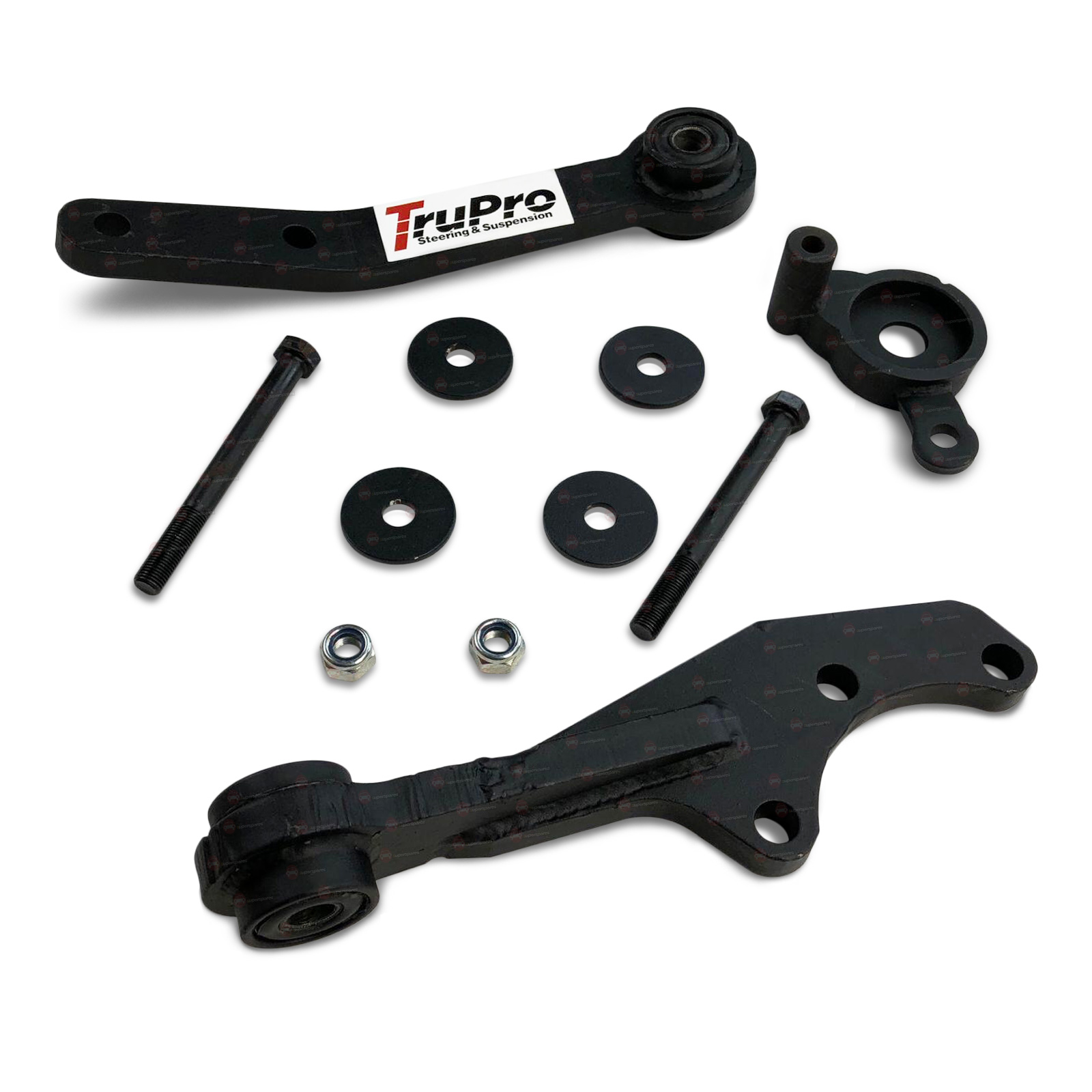

Front Direct Bolt In BIG Lift Diff Drop Kit 2" - 4" Lift

Suit:

TOYOTA HILUX Revo N80 4WD 2015-On

(*please advise year model, so we can make sure send you the right parts)

Diff Drop Kits are designed to be fitted when 2 inch or bigger lifts are performed.This kit is 100% Bolt in, No Fabrication Required.When raising your Hilux over 50mm,a Diff Drop kit Must be have.

Drop the Diff 30mm and improves the drivers side weak link by reinforcing the drivers side diff mounting bracket and mounting it to the rear crossmember as well as the front cross member, adding more strength over the standard setup.

When lifting IFS Vehicles, the Constant Velocity (CV) joints are put on an increased angle. This increased angle of the CV joint during operation can accelerate the wear on the joint, as well as putting additional stress on the CV boots leading to splitting and eventually premature failure of the CV. This wear is accelerated further if larger (wider) wheels and tyres are fitted.

  • Application specific
  • Supplied complete
  • Corrects the geometry on the front driveshaft and CV's
  • Lowers the front diff by approx. 30mm
  • Reduces the angles the CV joints need to operate on
  • Avoids the expensive replacements of CV's and boots

The Trupro Diff Drop Kits are application specific and supplied complete to get the job done. The bolt on kit corrects the geometry on the front driveshaft and CV's, lowering the front diff by approx. 30mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV's and boots.

Specifications

SKU Trupro-DDK-THR-CJ002
