3" Big Tyre Lift Kit Complete Strut Dobinsons Coil for Ford Ranger PX 18-on

Product Description

3 Inch Lift Big Tyre Solution Kit (up to 33 Inch):

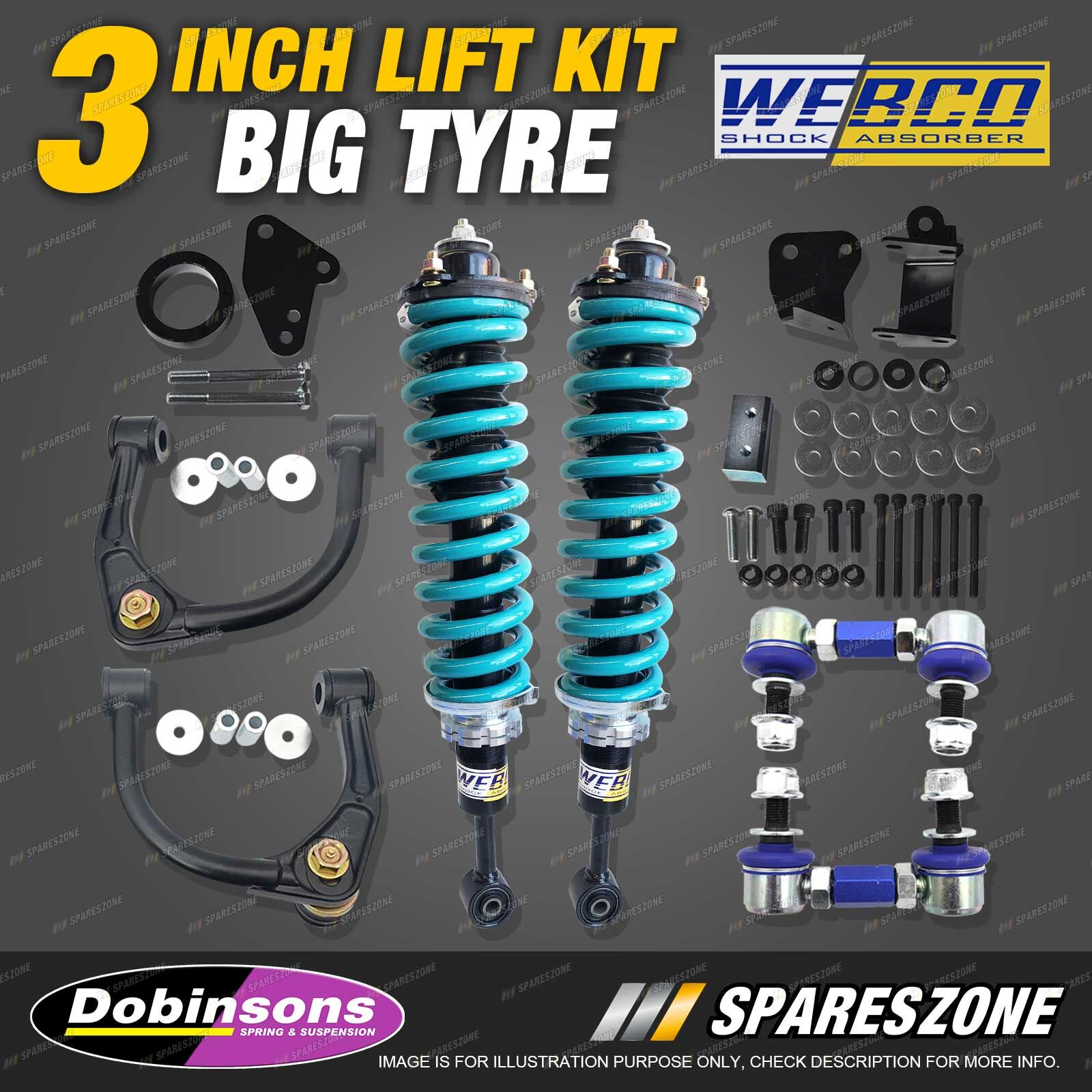

Contents :

2 x Webco Front 2 Inch 50mm - 3 Inch 75mm Adjustable Big Bore Complete Strut With Dobinsons Load Tested Coil Springs(40-70Kg With Bullbar OR Winch)

2 x Front 4X4FORCE Upper Adjustable Control Arms

2 x Front 4X4FORCE Adjustable Sway Bar Links

1 x Front 4X4FORCE Diff Drop Kit

Suits :

Ford Ranger PX III Mid 06/2018 on

(4x4 Strut Mounted Front Bump Stop Models Only, Also Suits 4x2 Highrider Australian and Internationally delivered models with Bolt and Eye Lower Front Strut Bush)

Note: Suits up to 33" tyres. Depending on wheel offset/width, some rear clearance trimming may be required. You’re welcome to contact us to confirm fitment.

Available Upgrade:

These are an ideal solution for 4WD owners wanting a budget priced kit of superior quality to other brands of suspension.They are ideal for 4WD vehicles and cost conscious owners.These Suspension Kits include:

Webco Adjustable Complete Strut Assembly
------------------------------------------------------------

Webco Adjustable Complete Strut Assembly is completely assembled and ready for installation. You no longer need to assemble components and there are no specialized tools required! It is manufactured from high quality materials at very affordable price.

• Webco Complete Strut include all the high quality components required for strut replacement in a single, fully-assembled unit.
• Each Complete Strut Assembly is designed and tuned for vehicle specific applications
• Helps restore factory ride height and original vehicle ride performance.
• Complete Strut Assembly includes: Webco Strut, Webco Strut Top Mount, Dobinsons Coil Springs.
• Direct Fit - Ready to Install - No Special Tools Required

Dobinsons Coil Springs.
-------------------------------------

• Start of the Art Heat Treatment - Heat treatment is unseen and is the most important steps in the coil spring manufacturing process. Hardening and tempering is completed by an extremely precise electronically controlled furnace to eliminate breakage and sagging.
• Formed On Precision Mandrels - Each coil is precisely placed by a programmable logic computer to achieve perfect pitch. This is especially important in manufacturing variable and progressive rate springs.
• High Intensity Shot Peening - All Dobinsons coils are shot peened to give longer life.
• Precise End Configurations - Engineered coil ends are designed to fit directly into the original vehicle mounting points without any modification.
• Design Technology - Spring Design engineers within Dobinsons Spring & Suspension utilize the latest coil spring design programs to ensure each spring will meet and exceed the design requirements and achieve the maximum working life. These state of the art design programs are crucial when designing variable/progressive rate springs to ensure laden and unladen spring rates are correct to provide the best possible ride comfort and handling.
• Powder Coat Finish - A durable powdercoat finish provides extreme protection against the elements
• Fully Scragged & Load Tested - All coils are scragged 100% to eliminate subsequent spring sag and load tested to ensure that they meet and maintain the required specifications. Dobinsons also perform spring fatigue testing and spring hardness testing using in-house state of the art testing equipment.


Most are approximately 50mm raised but with higher in some vehicles such as Landcruisers and Patrols.

4X4FORCE Control Arms & Diff Drop Kit
---------------------------------------------------------

4X4FORCE IFS Diff Drop Kits are application specific and supplied complete to get the job done. The bolt on kit corrects the geometry on the front driveshaft and CV's, lowering the front diff by approx. 25mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV's and boots. Allows the bash plate to be refitted.

4X4FORCE Adjustable Upper control arms are designed to run out of factory adjustment when wheel aligning after installing lift kit or new suspension. Our upper control arm gives 3 degrees of caster to suit lift height.

These give an excellent ride and handling both on and off road.

Kits are available for most popular 4WD makes and models.

Warranty

Dobinsons Coil Springs listed in this Listing have a 2 year warranty against the following:
1. Faulty Manufacture
2. Breakage
3. Sagging (being loss of free height of more than 10mm).
Webco Shock Absorbers listed have a 3 year warranty providing the vehicle does not have a modified exhaust system.
