Autobacs 4.1dBi Cellular Medium Duty Antenna 600mm - with Stainless Steel Spring

Product Description

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you. Copyright © 2014 - 2026 Superspares. All rights reserved.

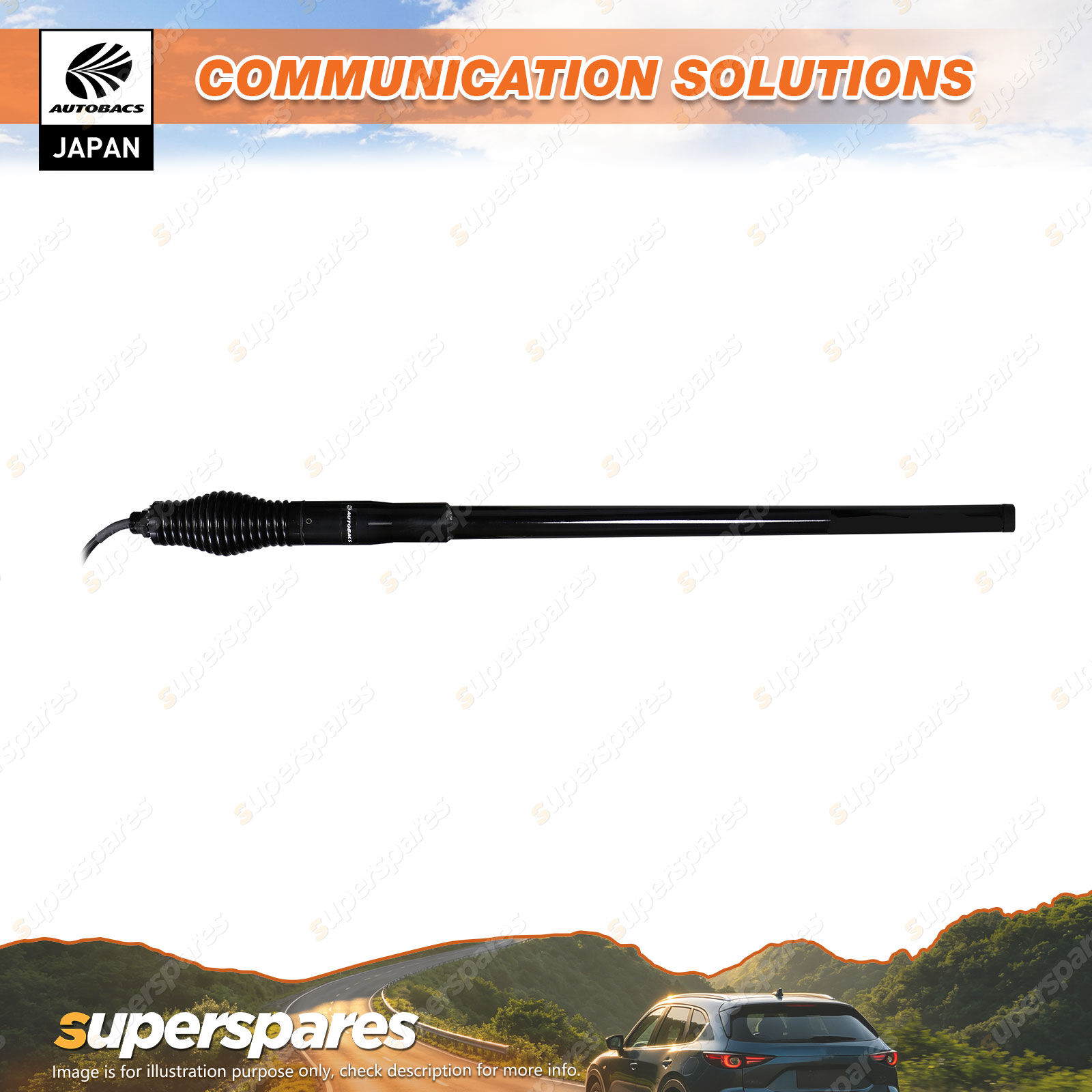

Contents : Autobacs 4.1dBi Cellular Medium Duty Antenna 600mm

Description :

The 4.1dBi 600mm BOOST-M600 Mobile Network Antenna is expertly calibrated to enhance the frequencies required in conjunction with a signal booster, resulting in an exceptional connection in regional areas where signal strength is weak. This allows for the most optimal performance possible.

Specifications :

• Roam R41
• Deploy the unit anywhere in the network, with full frequency coverage
• Latest 4th generation Nextivity proprietary IntelliBoost chip
• Support for 3G, 4G, and 5G dynamic spectrum sharing (DSS)
• Ease of installation with plug-and-play operation
• Frequency Bands: 1/3/5/7/8/20/26/28L
• Relay Channel Bandwidths (MHz): 5/10/15/20
• Networks: 3G/4G/5G
• Network Protocols: WCDMA/LTE/DSS
• Network Selection: Automatically (MyWave App set to "Following")
• Configured to authorized operator: PLMN-IDs
• Duplex Modes: FDD
• # of Relay Bands (MHz max.): 1
• Relay Bandwidth (MHz max.): 20
• Output Downlink Power (All Bands) (dBm max.): 0
• Output Uplink Power (Bands 5/8/20/26/28L) (dBm max.): 22
• Output Uplink Power (Bands 1/3/7) (dBm max.): 24
• System Gain (dBm max.): 100
• Enterprise-Grade Echo Cancellation (dB min.): 30
• Return Loss (dB typ.): -8
• BOOST L900 Antenna
• Optimized Bands: N5, N8, N28
• Horizontal Beamwidth: Omni-Directional
• Polarisation: Vertical
• Maximum Gain: 5dBi
• Overall Height: 900mm
• Whip Type: Detachable Collinear
• Whip Material: Fibreglass
• Whip Diameter: Ø16mm
• Spring: Stainless Steel
• Spring Diameter: Ø25mm
• Cable: 4.5m LMR240 COAX
• Cable Terminated: SMA male connector
• Include: SMA/F to FME/F Adaptor

About Autobacs

AUTOBACS AUSTRALIA (formerly known as Audioxtra) has built its commanding position in the Mobile Electronics industry by breaking new ground with an innovative range of products they have created across their core brands, anchored on Japanese ingenuity to meet Australian market needs. Each one offering market-leading features and benefits that add quality, functionality and reliability to consumer, commercial and industrial applications.
