Autobacs 7 Inch High Resolution Waterproof Monitor - suit 12V and 24V Systems

Product Description

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you. Copyright © 2014 - 2026 Superspares. All rights reserved.

Contents : Autobacs 7 Inch High Resolution Waterproof Monitor

Description :

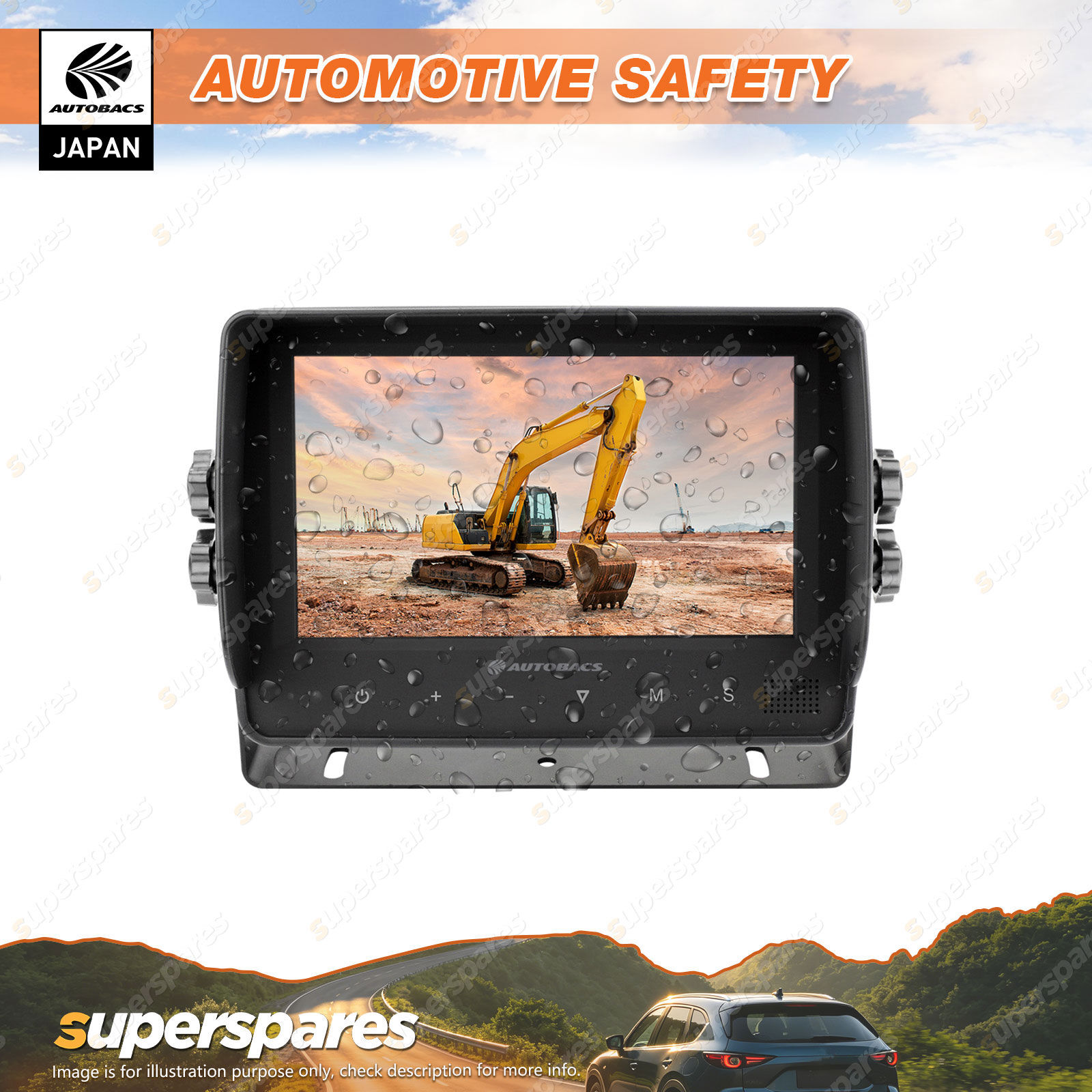

The HD73WP is a 7 inch monitor that is suitable for use in machinery, industrial applications, and trucking. It is designed to be water and dust proof, and can be used with both 12V and 24V systems. The monitor is equipped with an automatic camera switching feature, which allows up to three cameras to automatically switch when reversing. This enhances safety by ensuring that you always have a complete view of your surroundings.

Specifications :

• TFT Panel: New Grade A LCD
• LCD Size: 178mm (7-Inch) Diagonal
• Display Format: 16:9
• Resolution: 1024 x 600
• Contrast: 700:1
• Video Connect: 3 x 4-Pin (Male)
• Compatibility: Standard & High Resolution Cameras
• Video System: AHD/PAL/NTSC/AUTO
• Viewing Angles: 85° (Left/Right/Up/Down)
• Buttons: Touch Sensitive
• Connection Type: Universal Standard 4-Pin Configuration (M)
• Camera Triggers: 3
• Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
• A34 Audio output: Built-in 1W
• Waterproof: IP66
• Power Input: 10-32V DC (Negative Ground)
• Power consumption: -10W
• Operating temperature: -20-+70°C, RH90%
• Storage temperature: -30-+80°C, RH90%
• Dimensions:
• Not Including Bracket: 197W x 132H x 34D mm
• Including Bracket: 228W x 154H x 34D mm

INCLUDED

• Monitor
• Sunshade
• U-Bracket
• Stand mount
• Power & Trigger Cables
• Thumb Screws x4
• Nylon Washers x4
