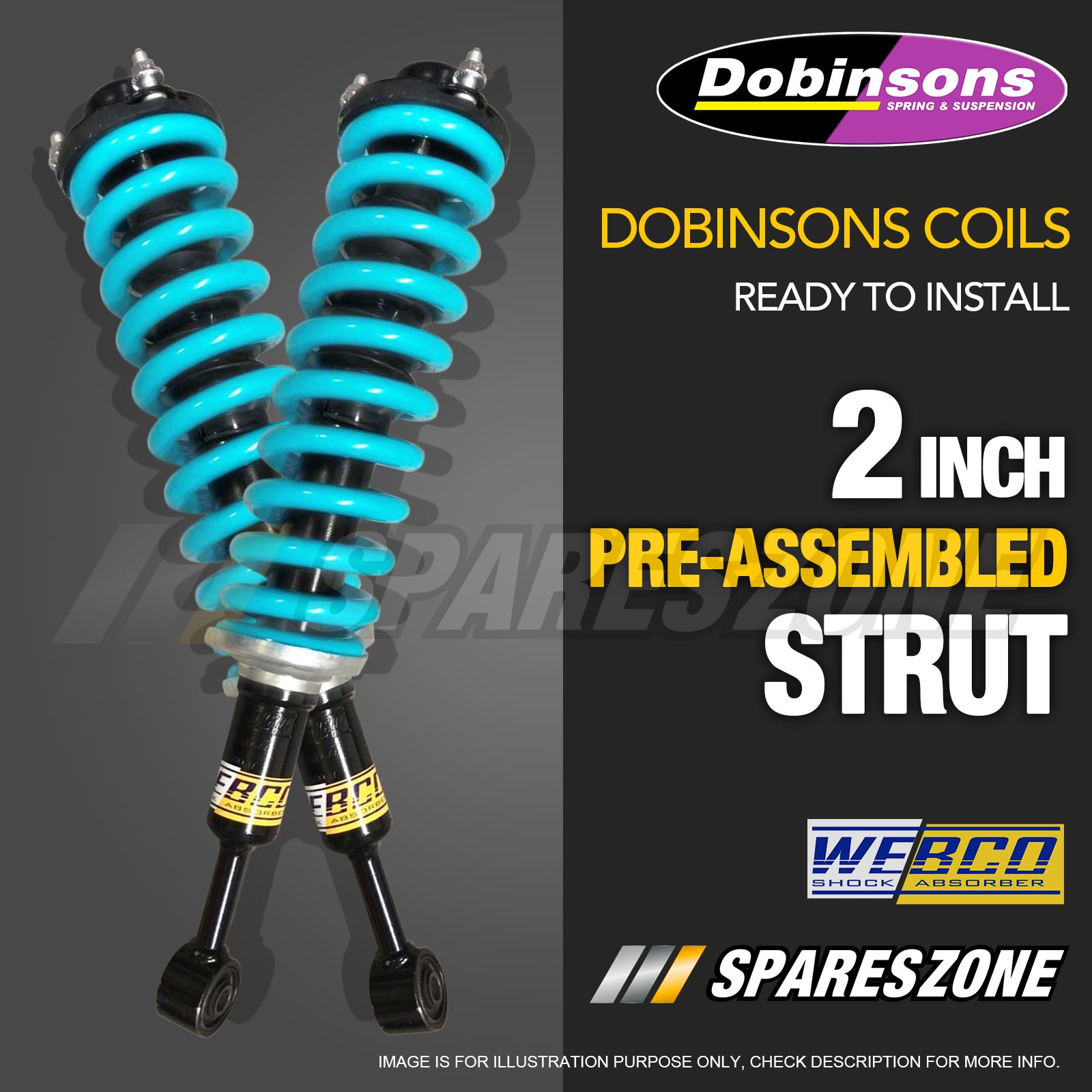

Complete struts assembly front lift kit Dobinsons Coil for Toyota Hilux KUN26

Product Features

• Fully Pre-Assembled — No Spring Compressor Required: The entire unit arrives assembled and ready to bolt in as a direct replacement. No specialist tools needed.
• Approximately 50mm (2-Inch) Front Lift: Raises front ride height to accommodate larger tyres and improve ground clearance for off-road use.
• Webco Big Bore Strut Body: Larger-diameter bore provides greater oil capacity for improved heat dissipation and longer damper service life under sustained off-road use.
• Dobinsons Comfort Coil Springs: Progressively tuned for a smooth, compliant ride at standard vehicle weights — no harsh, jarring ride quality often associated with lifted 4WDs.
• State-of-the-Art Heat Treatment: Each coil is hardened and tempered in a precisely controlled electronic furnace to prevent premature breakage or spring sag over time.
• Formed on Precision Mandrels: A programmable logic computer ensures perfect coil pitch across every spring — critical for the consistency of variable and progressive rate spring profiles.
• High-Intensity Shot Peening: Compressive stress treatment applied to the spring surface significantly extends fatigue life and resistance to cracking under repeated load cycling.
• Durable Powder Coat Finish: Protective powder coat guards the springs against rust, corrosion, and the harsh Australian climate.
• 100% Scragged & Load Tested: All springs are pre-compressed to eliminate future sag, then individually load-tested and hardness-tested against specification before shipping.
• Precise OEM-Match End Configuration: Spring ends locate directly into factory mounting points with no cutting, grinding, or chassis modification required.
• Vehicle-Specific Engineering: This assembly is tuned specifically for the N70/Vigo-generation Hilux — not a universal kit adapted across multiple platforms.

Lift Height & Tyre Clearance Guide

This kit raises the front of your Hilux approximately 50mm (2 inches) over standard ride height. Actual achieved lift may vary slightly based on current spring condition, vehicle load, and whether accessories such as a bull bar are fitted.

Note: Fitting tyres significantly larger than standard affects speedo calibration, braking distances, and fuel economy. Always confirm tyre clearance with your installer before purchasing.

Installation Overview

After installation, a 4-wheel alignment is mandatory. Vehicles fitted with aftermarket Upper Control Arms may require an alignment with extended caster range settings.

Recommended Add-Ons

• Heavy-Load Spring Upgrade (+$40/pair): If your Hilux runs a bull bar, winch, or carries 50–100kg of front-end accessories, upgrade to the heavier-rated Dobinsons spring set for this kit.
• Upper Control Arms (UCAs): Lifts over 40mm alter front suspension geometry. UCAs restore correct caster angle, eliminate ball joint binding, and allow proper wheel alignment. Browse our steering and suspension range for compatible options.
• Differential Drop Kit: Corrects CV joint angle on lifted vehicles, reducing vibration and extending the life of front driveshafts and CV boots.
• Extended Bump Stops: Prevent the strut from bottoming out at full droop on rough terrain, protecting the damper from impact damage.
• Rear Lift Components: Complete the levelled stance with matching Dobinsons rear leaf springs or add-a-leaf kits from our 4WD and off-road range.
