SKU: Dobinsons-LSLS-C1903-S017

Dobinsons 2 Inch 50mm Shocks + Leaf Lift Kit for Toyota Landcruiser FJ HJ BJ 75

$2,380.95
RRP $2,857.14
SAVE $476.19 (17%)

More info.

Make 4 payments of $595.24 over 8 weeks and get it now!

In Stock


Calculate Shipping



Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Local Pickup - $0.00
Pickup from Sydney Warehouse

Description

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

EFS_SHOCKS

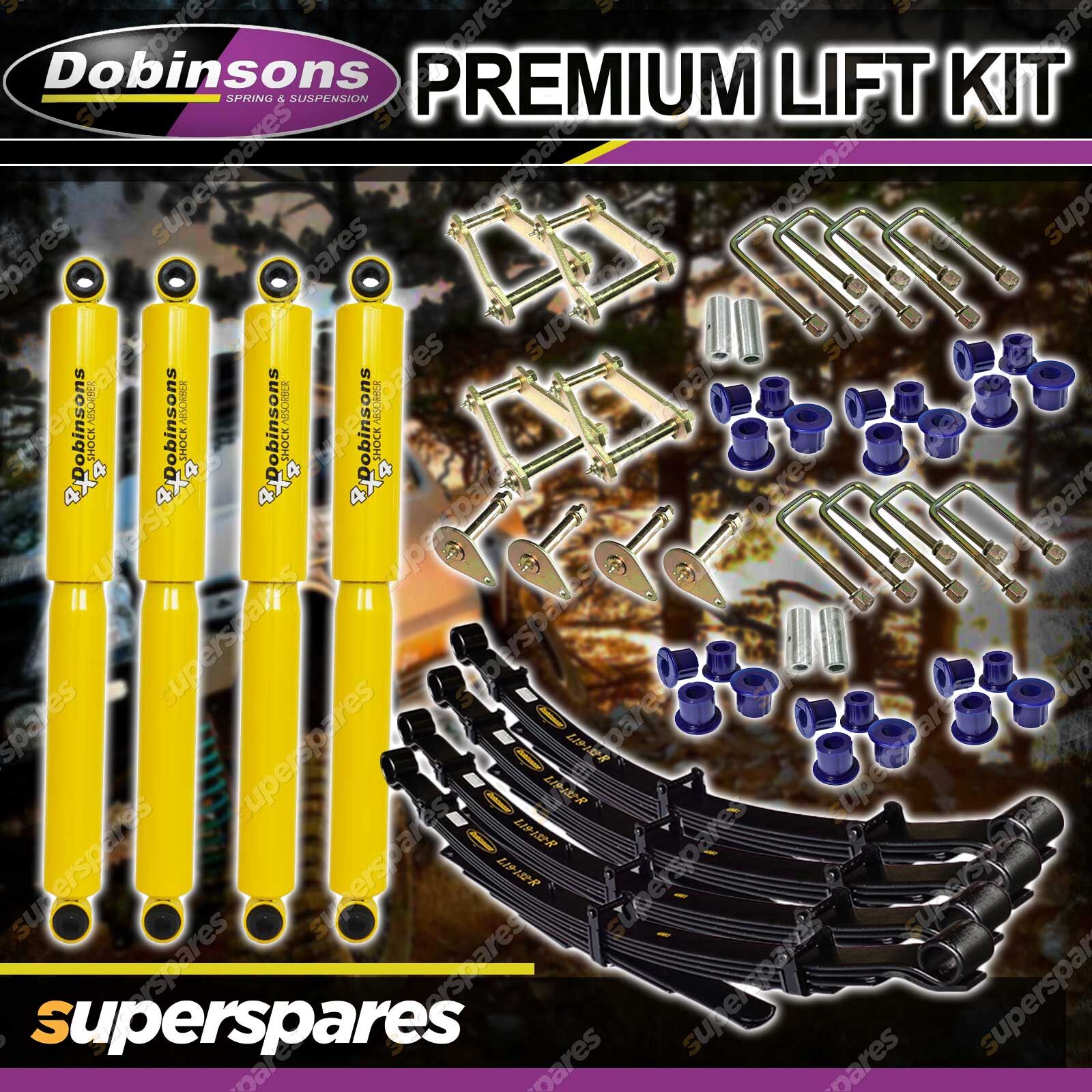

DOBINSONS 2 Inch 50mm SUSPENSION LIFT KIT CONTENTS:
LOCATION
DESCRIPTION
QTY
NOTEEBAY LINK
FRONT Dobinsons Shock Absorber2Heavy Duty Twin Tube Gasbuy separately
FRONT Dobinsons Medium Duty Leaf Spring + U Bolt + Bush2Without Accessoriesbuy separately
FRONT Dobinsons Shackle + Pin 1 buy separately
REAR Dobinsons Shock Absorber 2 Heavy Duty Twin Tube Gas Big Bore buy separately
REAR Dobinsons Medium Duty Leaf Spring + U Bolt + Bush2Up to 100Kg Constant Loadbuy separately
REAR Dobinsons Shackle + Pin1buy separately
TO SUIT:

Toyota Landcruiser 75 Series - FJ75 HJ75 BJ75 11/1984 - 01/1990
Detail : Pickup, Troop Carrier, Rear Drum Brake

EFS_SHOCKS

Available Upgrade & Options:

LOCATION
SPRING RATING OPTION
QTY
PRICE
LINK
FRONT Heavy Duty Coil springs(40-70Kg With Bullbar OR Winch) 2 +40 Pair
REAR Heavy Duty Leaf springs(300Kg Constant Load) 2 +80 Pair
REAR Extra Heavy Duty Leaf springs(500Kg Constant Load) 2 +120 Pair
Note: Lift Height depend on combined accessories' weight on the vehicle

EFS_SHOCKS

Dobinsons Twin Tube Nitrogen Gas charged shock absorbers are made from the world's highestquality external and internal parts sourced worldwide. They provide a significant increase inperformance over the standard shock absorbers.

Features Include:

  • Tough twin tube design has the benefit of holding larger volume of oil (keeping the internal workings cooler) and improved protection of internal working components
  • Low pressure nitrogen gas which eliminates aeration within the oil reservoir, meaning no bouncing, sloppiness nor deterioration of ride
  • Teflonned piston rings produce less wear and heat to the bore and increase the life of the shock absorber
  • Special anti-bump stops preserve the piston from extreme impacts when fitted to vehicles with coil spring suspension systems
  • Valve coding maximises off-road and on-road performance
  • Valve stacking system controls dampening laws and permits a record response time in any situation, enhancing safely and comfort
  • Polyurethane paint, gives extended life against the elements
  • have a 2 year warranty


EFS_SHOCKS


With over 60 years of experience manufacturing in Australia, Dobinsons Spring & Suspensionare no strangers to providing the highest quality spring and suspension components, and ourrange of leaf springs are no exception.

Dobinsons Leaf Springs Feature Include:

  • Stringent quality control procedures for Heat Treatment (Tempering) processes at all phases of the manufacturing processes ensures Dobinsons Springs are made the same exceptional way every time.
  • All leaf lengths are designed and calculated to achieve High Performance spring. Inappropriate leaf lengths will concentrate stress in one particular area and will cause premature sagging or breaking.
  • To assist in Load Distribution and reduce Inter Leaf Friction which occurs at the end of the leaves.
  • Where possible, a Military Wrapper is used as a safety mechanism to aid the vehicle's steering in the case of the main leaf breaking.
  • Scragging is a process where the spring is load tested to 90% of the Yield Stress of the material used. This process helps to relieve and prevent sagging.
  • Reduce friction at the tip of the leaves where the Load is greatest in the spring.

EFS_SHOCKS

Dobinsons 4x4 U-bolts are made from high quality, 10.9 gradehigh tensile steel and supplied with hardened deep nuts formaximum clamping pressure and reliability. It is recommendedthat when replacing leaf springs that new u-bolts are fitted.

Supplied in anti corrosion zinc finish.



EFS_SHOCKS


Dobinsons Spring and Suspension's polyurethane bushes havebeen designed and manufactured from the highest quality rawmaterials and unlike other competitors have been designed tosuit both Dobinsons leaf springs and the original vehicle leafsprings.

Polyurethane-BushesDobinsons Polyurethane leaf springbushes provide a smooth comfortable ride and when combinedwith Dobinsons 4x4 greasable shackles provide a far superiorservice life than the original vehicle bushes.

EFS_SHOCKS

Dobinsons Spring & Suspension's range of 4wd shacklesand pins offer have been designed and manufactured tomaximize the life of both the polyurethane bushes andshackles. Incorporating a recessed twin hole greasable designthe ensure both halves of the polyurethane bush receiveeven grease distribution. Greasing polyurethane bushes notonly reduces friction and wear, it also reduces the chancesof corrosion on the shackle pins and reduces squeaking.

Dobinsons 4wd shackles and pins are a heavy duty design andprovide simple servicing through external grease nipples.

In some cases Dobinsons also provide anti-inverse shacklesto prevent the shackles from inverting on lifted leaf springvehicles.



EFS_SHOCKS

EFS_SHOCKS

Specifications

SKU Dobinsons-LSLS-C1903-S017
