SKU: Dobinsons-CSTLK-C1903S070

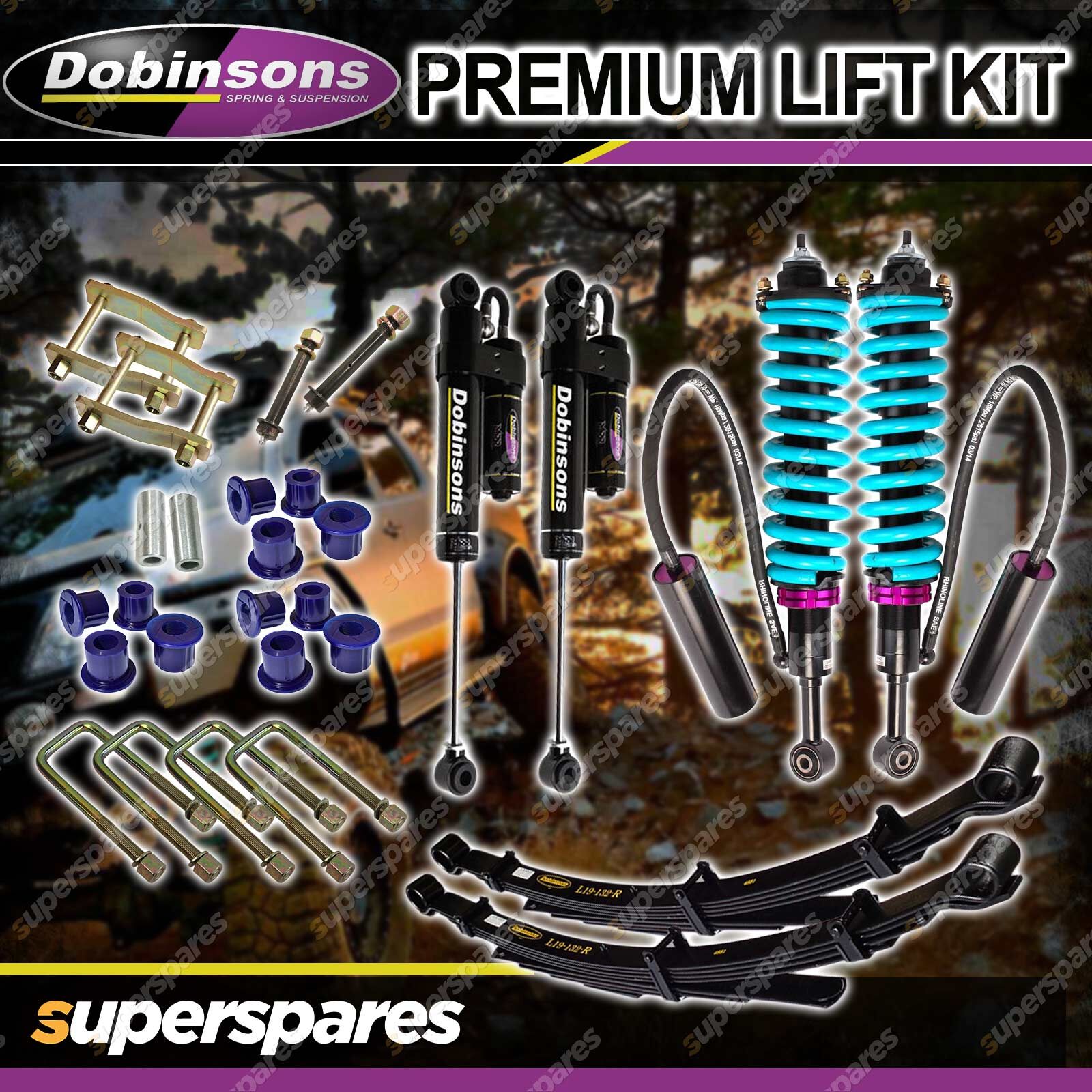

Dobinsons 50mm MRR Shocks Complete Strut Lift Kit for Toyota Hilux KUN26 Single

$2,482.95
RRP $2,979.54
SAVE $496.59 (17%)

More info.

Make 4 payments of $620.74 over 8 weeks and get it now!

In Stock


Calculate Shipping



Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Local Pickup - $0.00
Pickup from Sydney Warehouse

Description

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

EFS_SHOCKS
DOBINSONS 2 Inch 50mm SUSPENSION LIFT KIT CONTENTS:
LOCATION
DESCRIPTION
QTY
NOTE EBAY LINK
FRONT Dobinsons Shock Absorber 2 Heavy Duty Monotube Remote Reservoir buy separately
FRONT Dobinsons Medium Duty Coil Spring 2 Without Accessories buy separately
REAR Dobinsons Shock Absorber 2 Heavy Duty Monotube Remote Reservoir buy separately
REAR Dobinsons Medium Duty Leaf Spring + U Bolt + Bush 2 Up to 100Kg Constant Load buy separately
REAR Dobinsons Shackle + Pin 1   buy separately
TO SUIT:


Toyota Hilux Vigo 150 Series KUN26 Single Cab 4.0L V6 Petrol 3.0L TD 2005 - Mid 2015

EFS_SHOCKS

Available Upgrade & Options:

LOCATION
SPRING RATING OPTION
QTY
PRICE
LINK
FRONT Heavy Duty Coil springs(50-100Kg With Bullbar AND Winch) 2 +40 Pair
REAR Heavy Duty Leaf springs(280Kg Constant Load) 2 +80 Pair
REAR Extra Heavy Duty Leaf springs(450Kg Constant Load) 2 +120 Pair
Note: Lift Height depend on combined accessories' weight on the vehicle

EFS_SHOCKS

Over four years of research, development and testing was undertaken to produce DobinsonsMonotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premiumquality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfecthousing for an enormous oil capacity and surface area to resist shock fade and maintain vehiclehandling.

Features Include:

  • 3mm wall thickness
  • Induction hardened piston rod
  • Vehicle specific valving
  • Single tube body construction for best heat dissipation
  • Threaded body for height adjustment
  • 3 stage oil seal system
  • Positive separation between oil and gas to prevent fade and improve performance
  • Fully rebuildable
  • Direct bolt on fitment (no modifications required)
  • Highest grade German oil for high temperatures and durability



EFS_SHOCKS

Dobinsons manufacture after market Coil Springs to restore the ride height with our improved Design Coils. In most cases, the coil is 20% - 40% stronger than the original OEM Spring.

This gives better Load Carrying capacity for Heavy Loads and enhances Road Handling while also improving towing capacities.

Features Include:

  • Dobinsons computers have a design that allows the spring to maximise what is expected of the spring
  • The powder coat finish is baked on to give a lasting protective coat to help eliminate rust.
  • Each coil is precisely placed by a programmable logic computer to achieve perfect pitch. This is very important in Variable and Progressive Rate Springs.
  • All coils are scragged 100% to eliminate subsequent spring sag and load tested to ensure that they meet and maintain the required specifications.
  • Engineered Coil Ends are designed to fit the vehicle correctly.
  • Coils are shot peened to give longer life.
  • State of the Art Heat Treatment
  • have a 2 year warranty



EFS_SHOCKS

With over 60 years of experience manufacturing in Australia, Dobinsons Spring & Suspensionare no strangers to providing the highest quality spring and suspension components, and ourrange of leaf springs are no exception.

Dobinsons Leaf Springs Feature Include:

  • Stringent quality control procedures for Heat Treatment (Tempering) processes at all phases of the manufacturing processes ensures Dobinsons Springs are made the same exceptional way every time.
  • All leaf lengths are designed and calculated to achieve High Performance spring. Inappropriate leaf lengths will concentrate stress in one particular area and will cause premature sagging or breaking.
  • To assist in Load Distribution and reduce Inter Leaf Friction which occurs at the end of the leaves.
  • Where possible, a Military Wrapper is used as a safety mechanism to aid the vehicle's steering in the case of the main leaf breaking.
  • Scragging is a process where the spring is load tested to 90% of the Yield Stress of the material used. This process helps to relieve and prevent sagging.
  • Reduce friction at the tip of the leaves where the Load is greatest in the spring.



EFS_SHOCKS

Dobinsons 4x4 U-bolts are made from high quality, 10.9 gradehigh tensile steel and supplied with hardened deep nuts formaximum clamping pressure and reliability. It is recommendedthat when replacing leaf springs that new u-bolts are fitted.

Supplied in anti corrosion zinc finish.


EFS_SHOCKS


Dobinsons Spring and Suspension's polyurethane bushes havebeen designed and manufactured from the highest quality rawmaterials and unlike other competitors have been designed tosuit both Dobinsons leaf springs and the original vehicle leafsprings.

Polyurethane-BushesDobinsons Polyurethane leaf springbushes provide a smooth comfortable ride and when combinedwith Dobinsons 4x4 greasable shackles provide a far superiorservice life than the original vehicle bushes.

EFS_SHOCKS

Dobinsons Spring & Suspension's range of 4wd shacklesand pins offer have been designed and manufactured tomaximize the life of both the polyurethane bushes andshackles. Incorporating a recessed twin hole greasable designthe ensure both halves of the polyurethane bush receiveeven grease distribution. Greasing polyurethane bushes notonly reduces friction and wear, it also reduces the chancesof corrosion on the shackle pins and reduces squeaking.

Dobinsons 4wd shackles and pins are a heavy duty design andprovide simple servicing through external grease nipples.

In some cases Dobinsons also provide anti-inverse shacklesto prevent the shackles from inverting on lifted leaf springvehicles.



EFS_SHOCKS

EFS_SHOCKS

Specifications

SKU Dobinsons-CSTLK-C1903S070
