Heavy Duty Air Suspension Load Assist Kit for Nissan Navara NP300 Coil Rear

CONTENTS:

1 x Rear Heavy Duty Air Suspension Load Assist Kit (2.27T)

SUIT:

Nissan Navara NP300 4WD Coil Assist

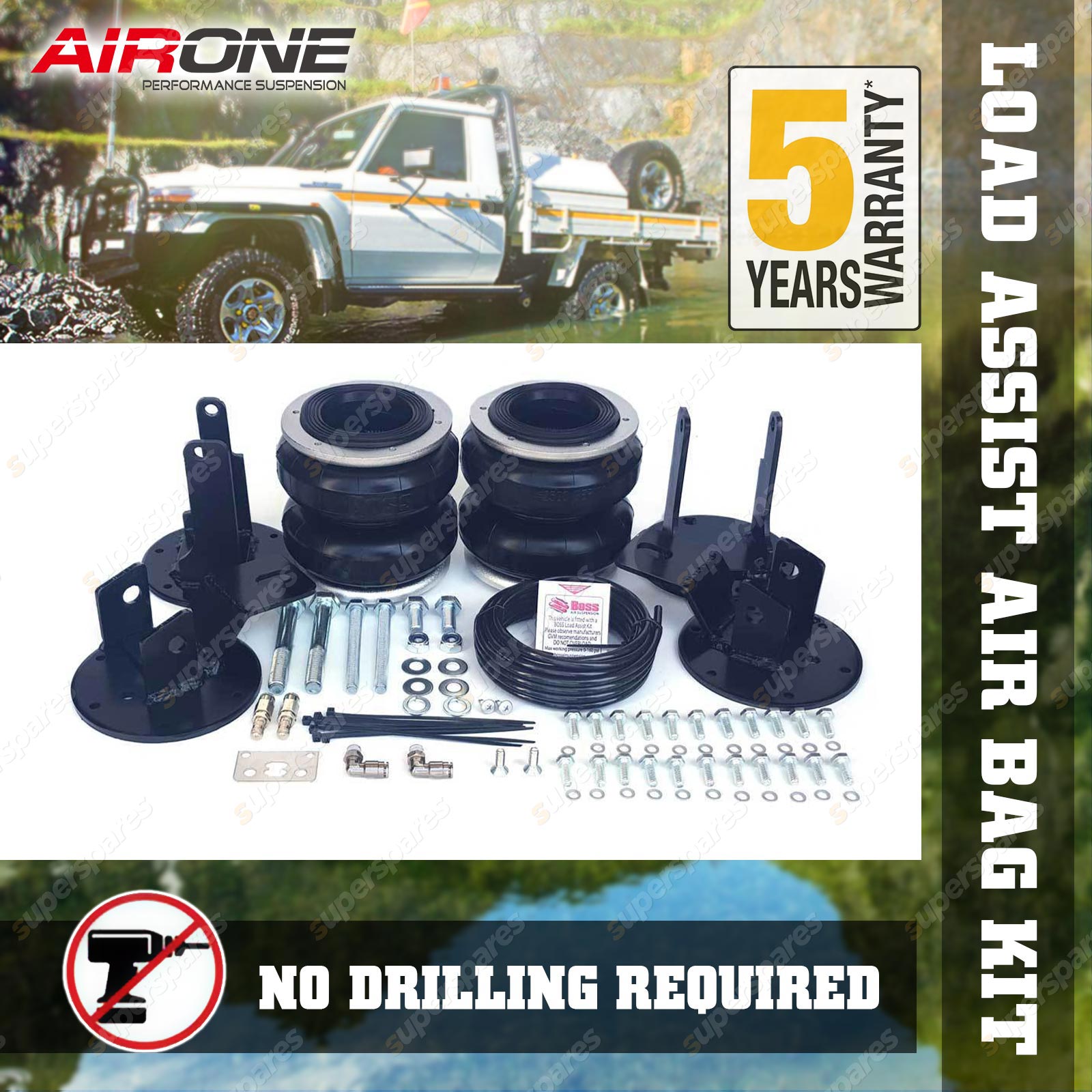

The Load Assist Kit comes with:

• 2 x BOSS Extreme Series Double Bellow air springs
• 4 x brackets (2 upper & 2 lower)
• Mounting Hardware
• Quality SAE J844 Government Approved Airline
• Dual Schrader Valves Mounted in Stainless Panel
• Instructions for fittin

Strength & Specifications

* Support Wires - 9 High Tensile Central, 4 Each End

* Cured Natural rubber

* Ballistic woven reinforcing

* 6mm Zinc Plated Steel End Caps

* Burst Pressure - Over 600psi

* Independent Test Pressure - 480psi

* Recommended working range - 5psi - 160psi

* Airone air springs have a recommended test pressure of 480psi. That meets the pressure vessel industry guidelines of 3 times the maximum working pressure.

* Airone air springs are undeniably the strongest in the automotive industry and exceed any other air Springs brands by nearly double.

* When Airone air springs are utilised in the load assist applications it's virtually impossible to pull the bags apart. Since The Airone air springs started manufacturing ,There never had an air Springs fail from bursting.

The Airone Extreme series air springs are rated at 2500lb or 1136kg per side and have been government approved tested to over 750psi.

Average dual cab ute will run around 15-45psi depending on load.

NOTE: This kit is not suitable for a lowered vehicle due to the limited space between the chassis and axle.
