Product Description

Contents : 1 x Sony 6.95" Apple Car Play Media Receiver with iDatalink & Maestro

Description :

Enjoy smooth and simple control for every journey. An anti-glare 6.95 inch (17.6 cm) touchscreen and interface are designed to give you intuitive control over music, communications and more. With LDAC™ high quality Bluetooth® connectivity, plus time alignment and a 14-band EQ, it allows for even more personalisation and provides the perfect in-car audio experience.

Specifications :

Size & Weight

DIMENSIONS (W X H X D) : 178 x 100 x 132 mm
WEIGHT : 1.0 kg

General Features

EQUALIZER : 14-band Equalizer
FIRMWARE UPGRADABILITY : Yes
OUTPUT POWER : 55W x4
PRE OUT : 3 Pre (Front LR / Rear LR / Sub x 1)
REAR VIEW CAMERA IN : Rear
TIME ALIGNMENT : Yes
USB : Yes (Type-C x 1, REAR)

Tuner Features

AUTO MEMORY : BTM
PRESET : FM18/AM12
RDS / EON : Yes (RBDS)

Bluetooth® Profile

A2DP : Yes (1.3.1)
AVRCP : Yes (1.6.1)
HFP : Yes (1.7.1)
PBAP : Yes (1.1)

Bluetooth® Feature

ALPHABETICAL PHONEBOOK SORTING : Yes
BATTERY REMINDER : Yes
CALL VOLUME LEVEL CONTROL : Yes
EXTERNAL MICROPHONE : Supplied
LAST DIALED CALL : Yes(select from the dialed call history)
PHONEBOOK ACCESS VIA PBAP : Yes
RECENT CALLS (# OF) : Yes
RING VOLUME LEVEL CONTROL : Yes
SIGNAL STRENGTH INDICATION : Yes
SPEED DIAL : Yes (6 memories)

Bluetooth® Audio Feature

AUDIO CODEC (BLUETOOTH AUDIO) : SBC/AAC/LDAC
AUDIO LEVEL ADJUSTMENT : Yes (-6dB to +6dB)
CUE / REV : Yes
META DATA INDICATION : Yes
PAUSE (BLUETOOTH AUDIO) : Yes
REPEAT CONTROL (AUDIO DEVICE SIDE) : Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE) : Yes
TRACK +/- : Yes

Panel Design

KEY ILLUMINATION : Yes (White)

Monitor(AVC)

BRIGHTNESS : Typ: 600 cd/m2
DIMMER : Auto/Manual select
LCD TYPE : Transmissive, TN Type
RESOLUTION (DOT) : 800 x 480
SCREEN ASPECT : 16 : 9
SCREEN DIAGONAL (INCH / CM) : 6.95 inches / 17.6 cm

Display Panel

DIMMER ADJUST : Yes
KEY ILLUMINATION INITIAL : White

User Interface

PARKING CONTROL : Yes
PARKING LINE ADJUST : Yes
REAR VIEW CAMERA-IN MARKER SETTING : Yes
TOUCH PANEL : Resistive

USB Mass Storage Device Control Feature

USB DEVICE CONTROL (AUDIO CODEC) : MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) : .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
USB DEVICE CONTROL (PAUSE) : Yes
USB DEVICE CONTROL (REPEAT) : TRACK/FOLDER/DRIVE
USB DEVICE CONTROL (RESUME PLAY) : Yes
USB DEVICE CONTROL (SHUFFLE) : OFF/FOLDER/DEVICE

Multi-Language

CAUTION : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch
MENU : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch

Connectivity

BLUETOOTH® : Yes

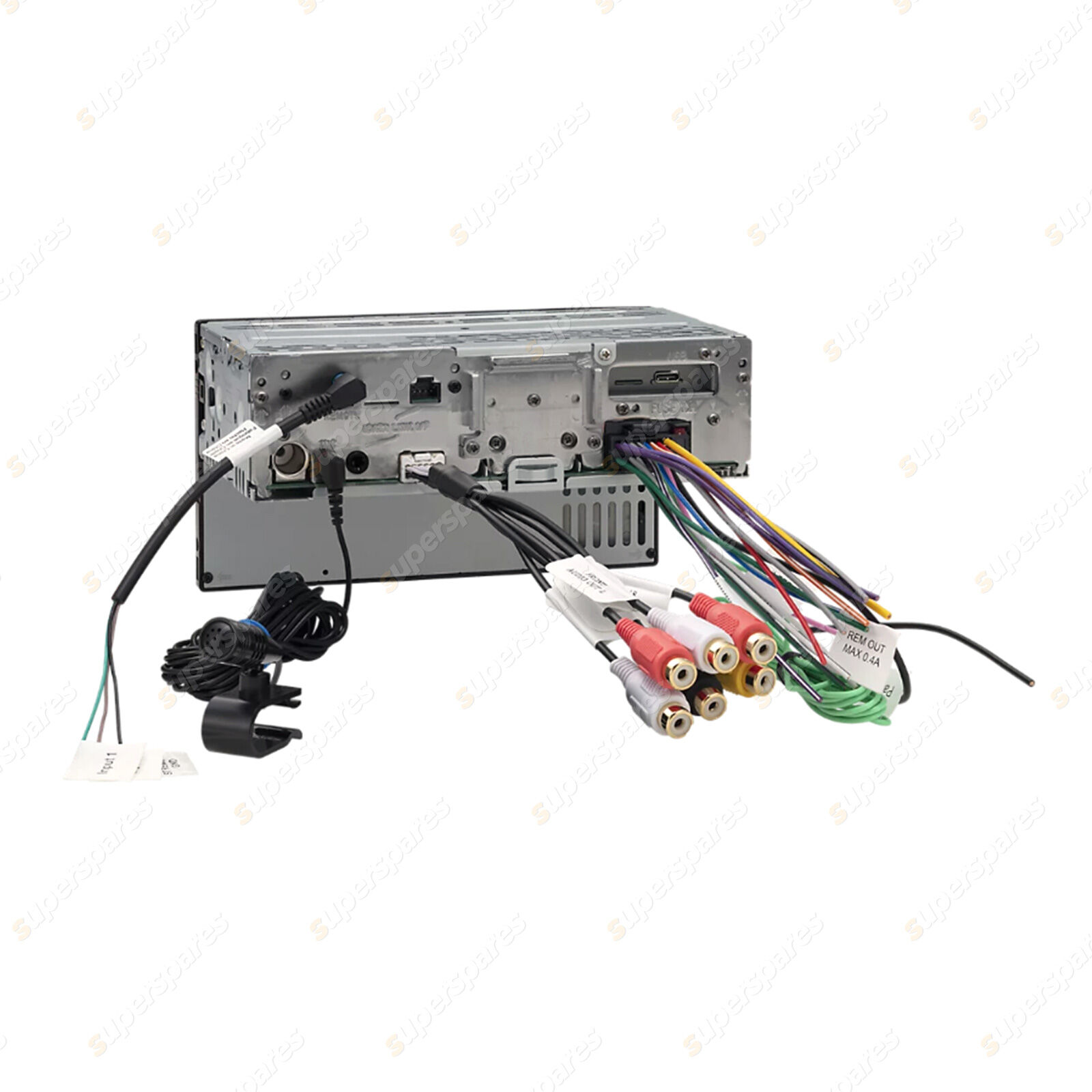

What's In The Box : External Microphone / GPS Antenna / Power Supply Leads / Steering Remote Control cable / USB Extension Cable(Type-C)

Features :

6.95 inch (17.6 cm) anti-glare sleek touchscreen

The anti-glare 6.95 inch (17.6 cm) touchscreen and clean interface design ensure a stylish and efficient user experience.

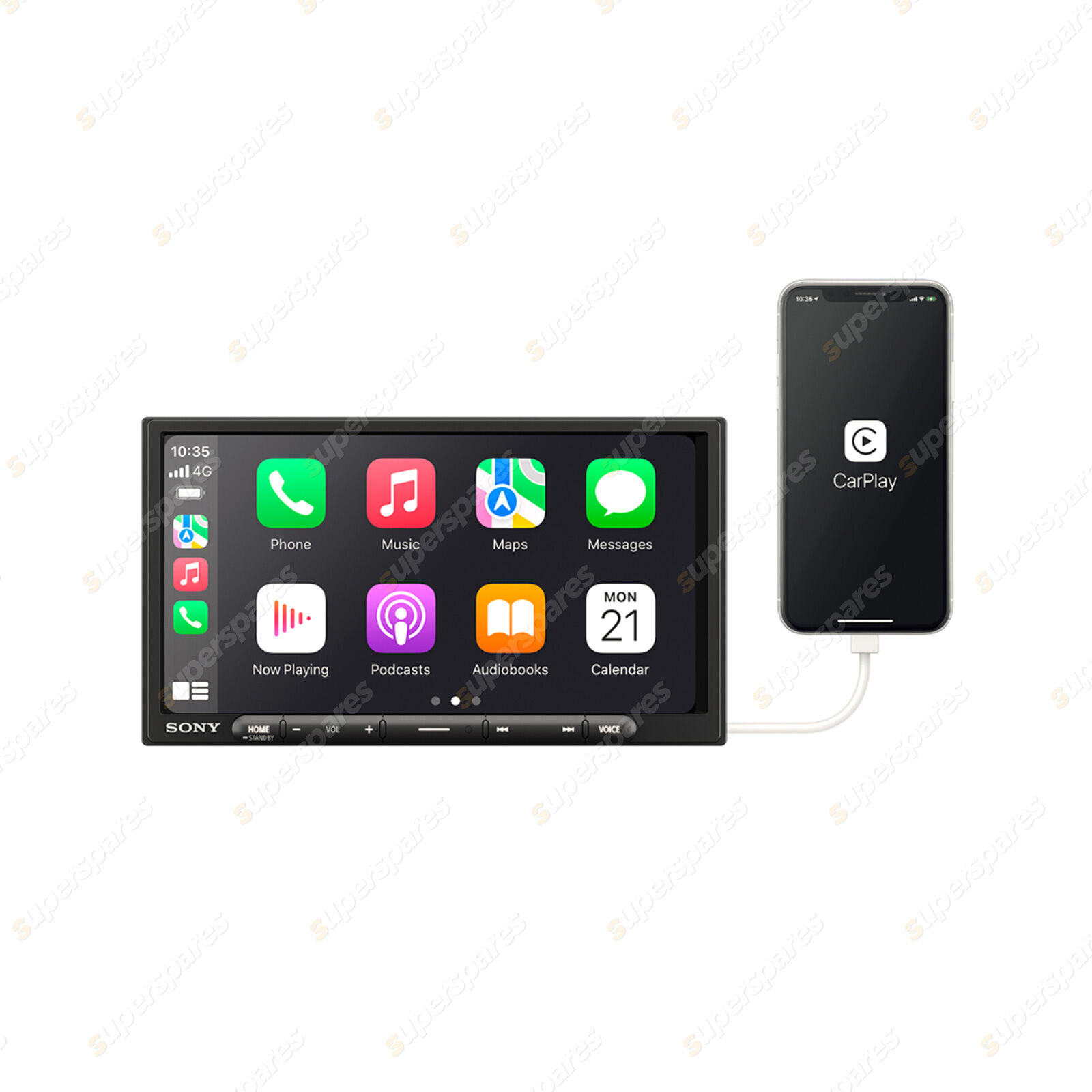

Apple CarPlay®

Connect your iPhone® for hands-free calling, music listening and messaging thanks to CarPlay. You can also use voice commands for navigation - including via third-party apps - and view traffic conditions right on the dashboard, all whilst staying safely focused on the road.

Connected to your car

iDatalink® Maestro® connects your vehicle's onboard computer with car audio, making it work as a customised display for your car's factory-equipped functions and features. It provides a seamless interface with factory infotainment and vehicle information, such as air conditioning, performance and safety. Simply connect an iDatalink® Maestro® RR/RR2 by Automotive Data Solutions. It's a new way to connect car audio to your vehicle while retaining and improving the functions of the original equipment.

Sound customisation

The built-in DSP offers sound processing and time alignment - down to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste. Together with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.

Quick Wake-up

With the Quick Wake-up feature, you're ready to go right after turning on the ignition

LDAC™ for exceptional sound quality

Enjoy the convenience of Bluetooth® wireless audio and exceptional sound quality, thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.

Simple button controls with intuitive design

The new button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.

Rear-view camera-ready

Got a rear camera installed? You can view its feed through the screen, along with customisable guidelines to help you reverse safely.

User Interface with customisable wallpaper

Customise the new ergonomic user interface to suit your car interior or taste, with four preset and two manual wallpaper colour settings.

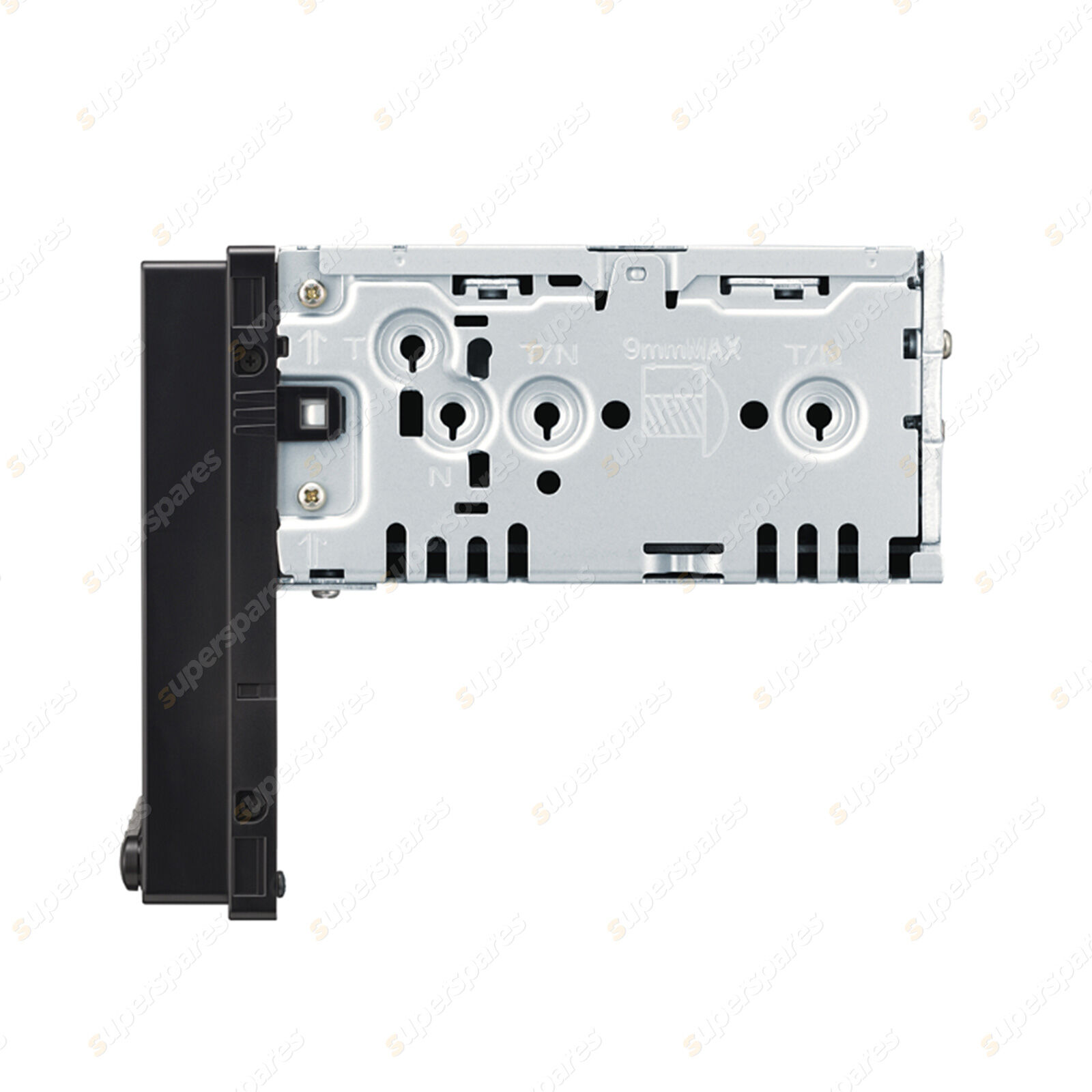

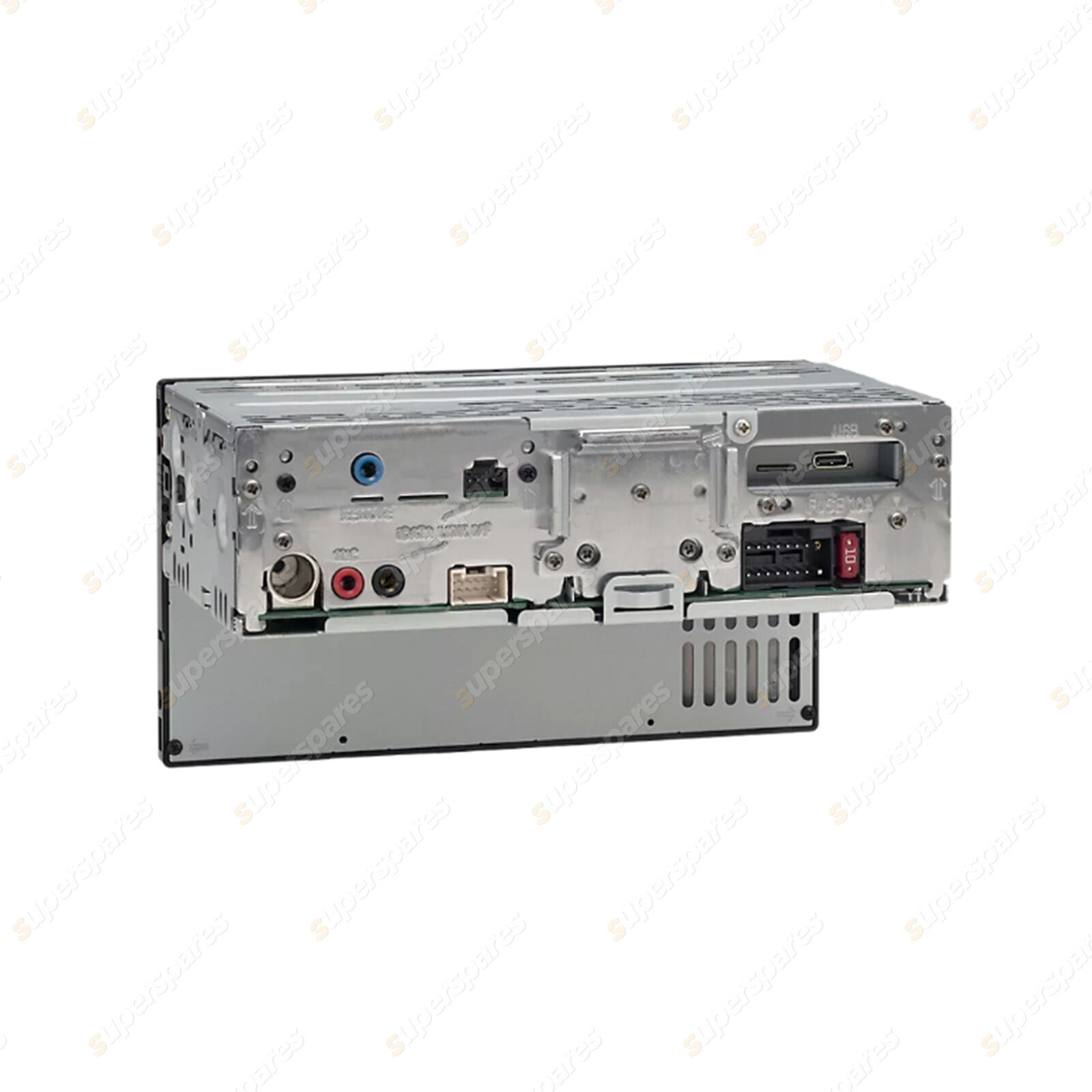

Easy installation, with a compact rear chassis

Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cables and other accessories in the space behind the display.

Environment in mind

Sony's products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XAV-AX3700, up to 90% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 80%, reflecting Sony's commitment to reducing environmental impact.
