Sony Digital Media Receiver with WebLink Cast 229 x 136 x 253mm - XAVAX8100

Product Description

Contents : 1 x Sony Digital Media Receiver with WebLink Cast

Description :

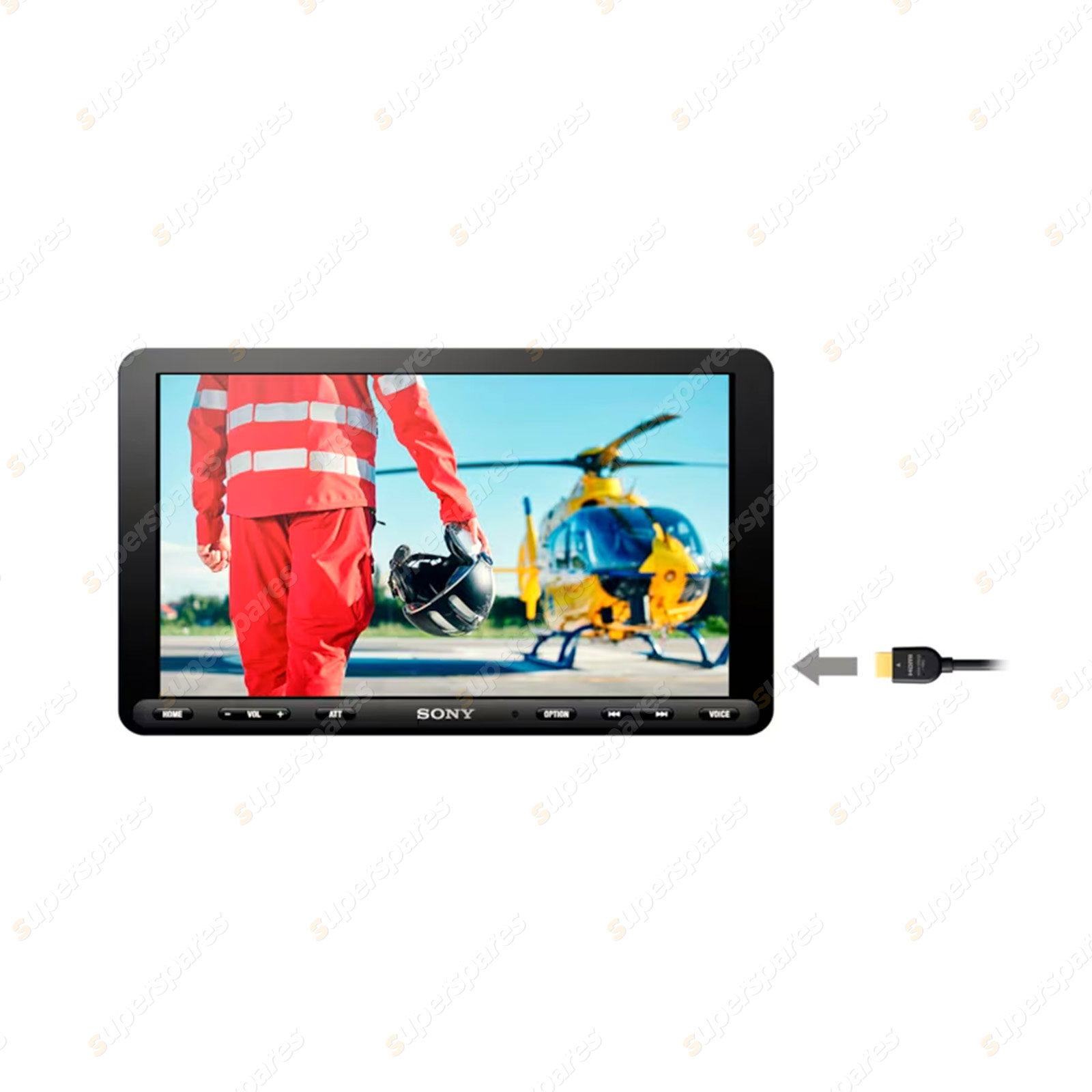

Access information and entertainment on the road with ease with the XAV-AX8100 Media Receiver. Despite the single-DIN installation, a huge 8.95" (22.7 cm) display puts smart connectivity, useful navigation and stunning sound quality in easy reach. Newly added HDMI connectivity allows you to hook up an external audio and visual source device.

Specifications :

Size & Weight

DIMENSIONS (W X H X D) : 229 x 136 x 253mm
WEIGHT : 2.4kg

General Features

ALBUM ARTWORK INDICATION : Yes
EQUALIZER : 10-band Graphic Equalizer
EXTRA BASS : Yes (Off / 1 / 2)
FIRMWARE UPGRADABILITY : Yes
OUTPUT POWER : 55W x4
PRE OUT : 3 Pre (Front / Rear / Sub x 1)
REAR VIEW CAMERA IN : Yes
DSO (DYNAMIC STAGE ORGANIZER) : Yes
USB : Yes (Rear x1)

Tuner Features

AUTO MEMORY : BTM
PRESET : FM18 / AM12
RDS / EON : Yes (RDS)

Bluetooth® Profile

A2DP : Yes (1.3)
AVRCP : Yes (1.3)
HFP : Yes (1.6)
PBAP : Yes (1.1)

Bluetooth® Feature

ALPHABETICAL PHONEBOOK SORTING : Yes
BATTERY REMINDER : Yes
CALL VOLUME LEVEL CONTROL : Yes
EXTERNAL MICROPHONE : Yes
LAST DIALED CALL : Yes (select from the dialed call history)
PHONEBOOK ACCESS VIA PBAP : Yes
RECENT CALLS (# OF) : Yes
RING VOLUME LEVEL CONTROL : Yes
SIGNAL STRENGTH INDICATION : Yes
SPEED DIAL : Yes (6 memories)

Bluetooth® Audio Feature

AUDIO CODEC (BLUETOOTH AUDIO) : SBC / AAC
AUDIO LEVEL ADJUSTMENT : Yes (-8dB to +18dB)
CUE / REV : Yes
GROUP (FOLDER) +/- : Yes
META DATA INDICATION : Yes
PAUSE (BLUETOOTH AUDIO) : Yes
REPEAT CONTROL (AUDIO DEVICE SIDE) : Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE) : Yes
TRACK +/- : Yes

Panel Design

KEY ILLUMINATION : Yes (White)
PANEL SURFACE FINISH COLOR : Black

Monitor(AVC)

BRIGHTNESS : 400 cd / m2
CONTRAST RATIO : 500
DIMMER : Yes
LCD TYPE : TFT Active Matrix
RESOLUTION (DOT) : 800 x 480
SCREEN ASPECT : 16:9
SCREEN DIAGONAL (INCH / CM) : 8.95 inch

Display Panel

DIMMER ADJUST : Yes
KEY ILLUMINATION INITIAL : Yes (White)

User Interface

ASPECT RATIO SELECT : Yes
GESTURE COMMAND : Yes
PARKING CONTROL : Yes
PARKING LINE ADJUST : Yes
REAR VIEW CAMERA-IN MARKER SETTING : Yes
REMOTE COMMANDER : RM-X170
TOUCH PANEL : Resistive + AG

USB Mass Storage Device Control Feature

USB DEVICE CONTROL (AUDIO CODEC) : PCM / MP3 / WMA / AAC / FLAC
USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) : .wav / .mp3 / .wma / .m4a / .flac
USB DEVICE CONTROL (PAUSE) : Yes
USB DEVICE CONTROL (REPEAT) : TRACK / FOLDER / DRIVE
USB DEVICE CONTROL (RESUME PLAY) : Yes
USB DEVICE CONTROL (SHUFFLE) : OFF / FOLDER / DEVICE
USB DEVICE CONTROL (VIDEO CODEC) : MPEG4-SP / AVC (H.264 Baseline) / WMV / FLV / MKV / XviD
USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION) : .mp4 / .wmv / .mkv

Multi-Language

CAUTION : English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
ID3 TAG : English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
MENU : English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian

Connectivity

BLUETOOTH® : Yes

What's In The Box : External Microphone / Remote

Features :

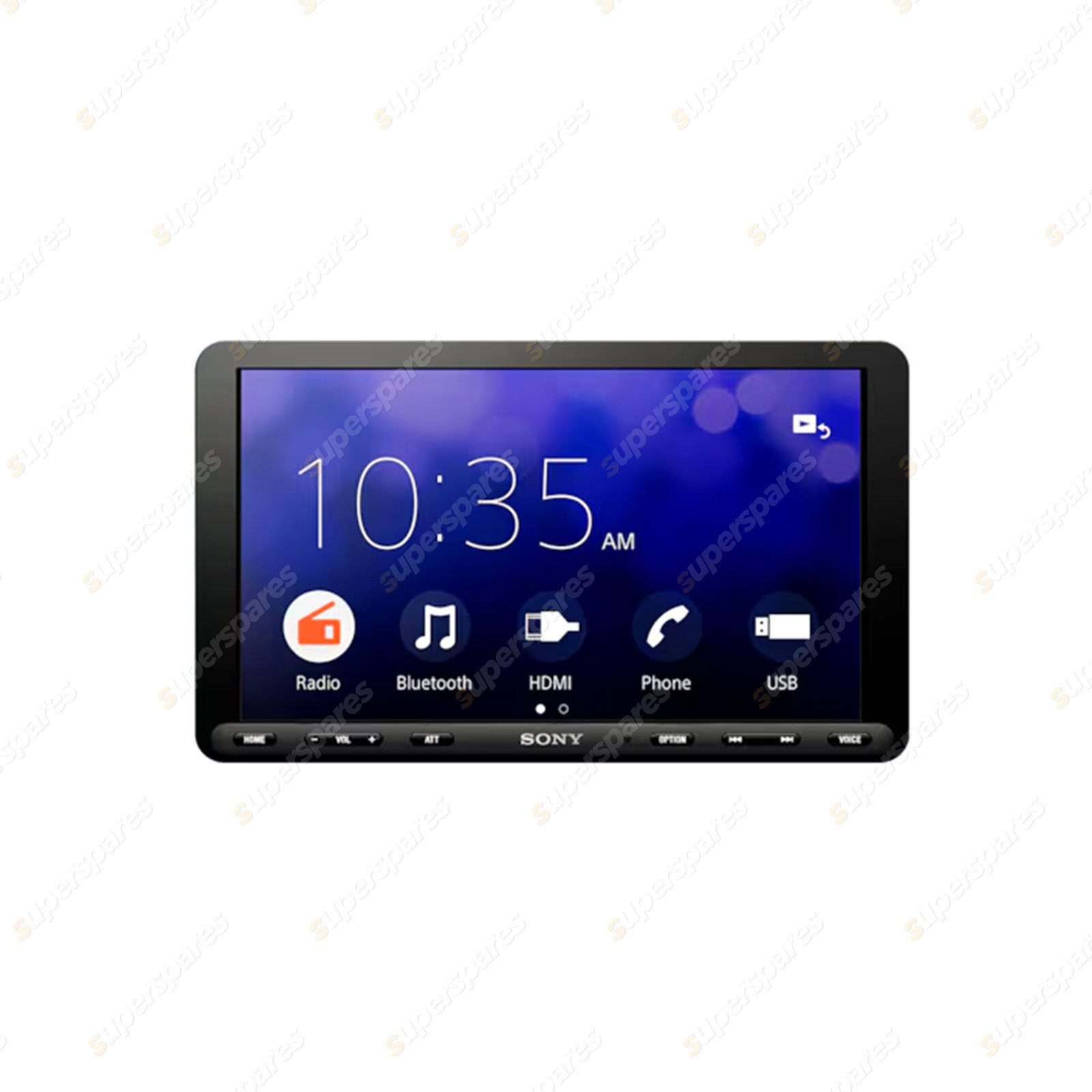

Oversized touchscreen offers everything at a glance

Whether you are getting directions, looking for a song on your smartphone, or customising your sound, the oversized 8.95" (22.7cm) anti-glare touchscreen makes everything easy to see at a glance, for safer use on the road.

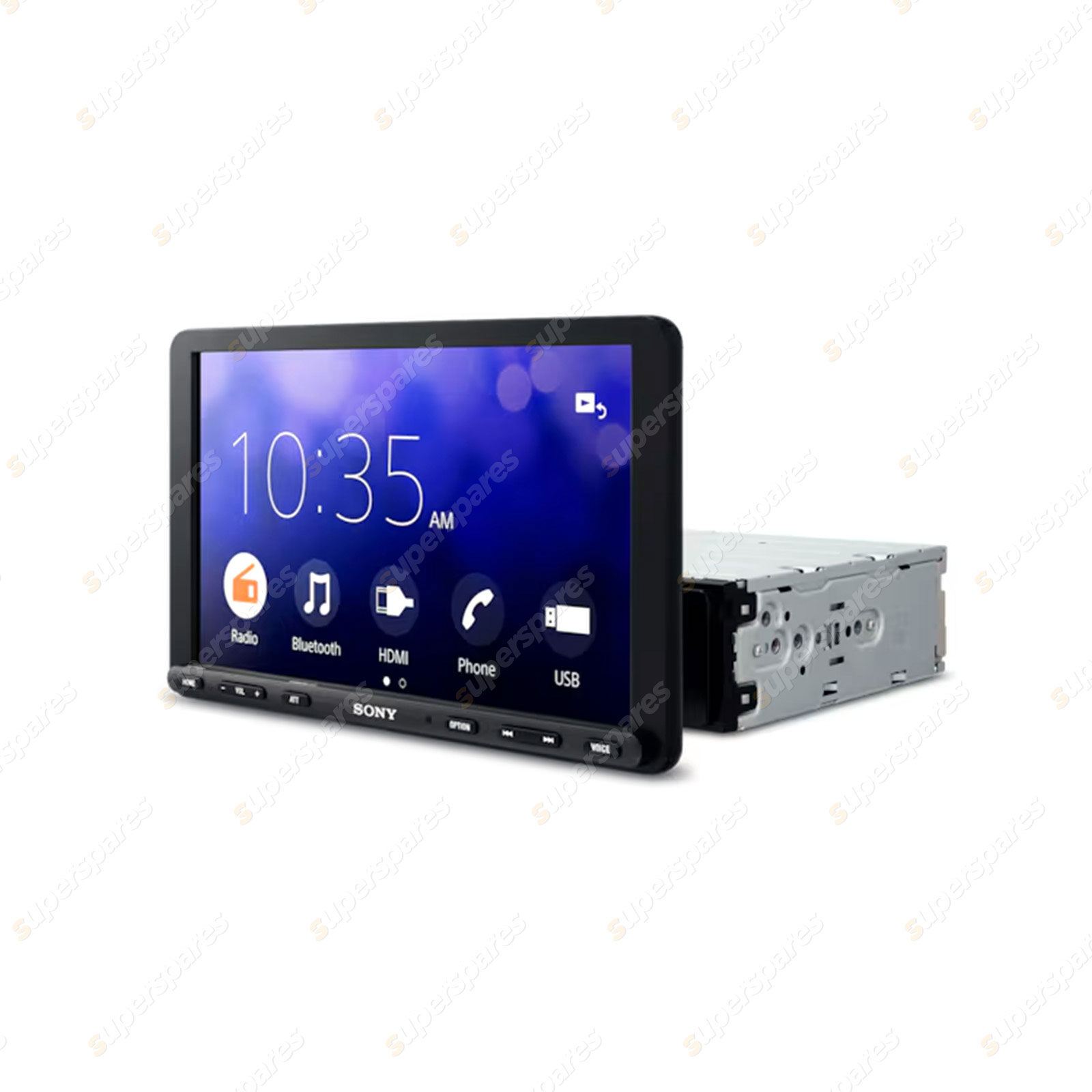

Three-way adjustable mount

A sturdy and adjustable mount works in three directions. With flexible installation options it can be installed in a variety of vehicles.

Smarter driving with intelligent voice control

Connect your smartphone to the XAV-AX8100 media receiver and speak through the supplied microphone. Voice control makes it safer and easier than ever to navigate, communicate and play music on the road.

Voice Control with Android Auto

Use voice commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback, just by talking.

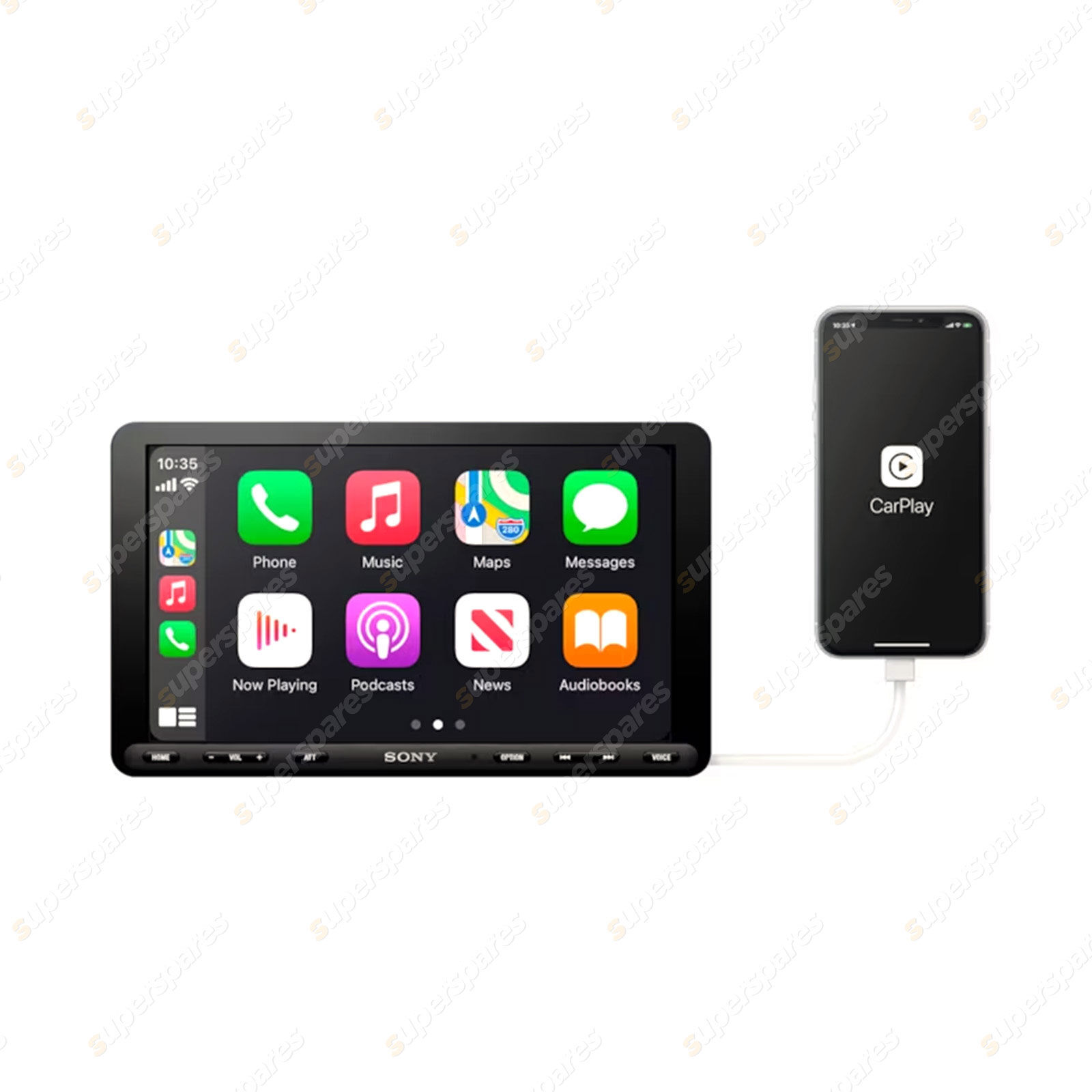

Siri with Apple CarPlay

Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

Navigating with Apple CarPlay

Tell Siri where you're going, and it will give you real-time directions as you drive.

WebLink™ Cast4 compatible

WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display ¨C for reliable, responsive infotainment anytime on the road.

Hear music your way Multiple customisation options let you adapt the audio experience to your liking. And with the built-in 4 x 55 W amplification, music sounds clear even at high volumes.

Navigating with Android Auto

Use Google Maps to get directions and traffic updates whenever you need them.

Powerful, clear amplification with Dynamic Reality Amp

Advanced signal processing from the 4 x 55 W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed. Even when you crank up the volume.

Music that jumps from your dashboard

Sound waves are directional, so if your speakers are in your doors or under your dash, the audio may seem muddy or unclear. Dynamic Stage Organizer adjusts the signal, improving the stereo positioning so music sounds like it's coming from the dashboard.

Sculpt your sound with 10-band graphic equalizer

Tailor the sound to your personal preference with the 10-band graphic equalizer.

Simple button controls

Get instant access to commonly-used features such as volume, source, sound settings and voice control, for safe and easy operation on the road.

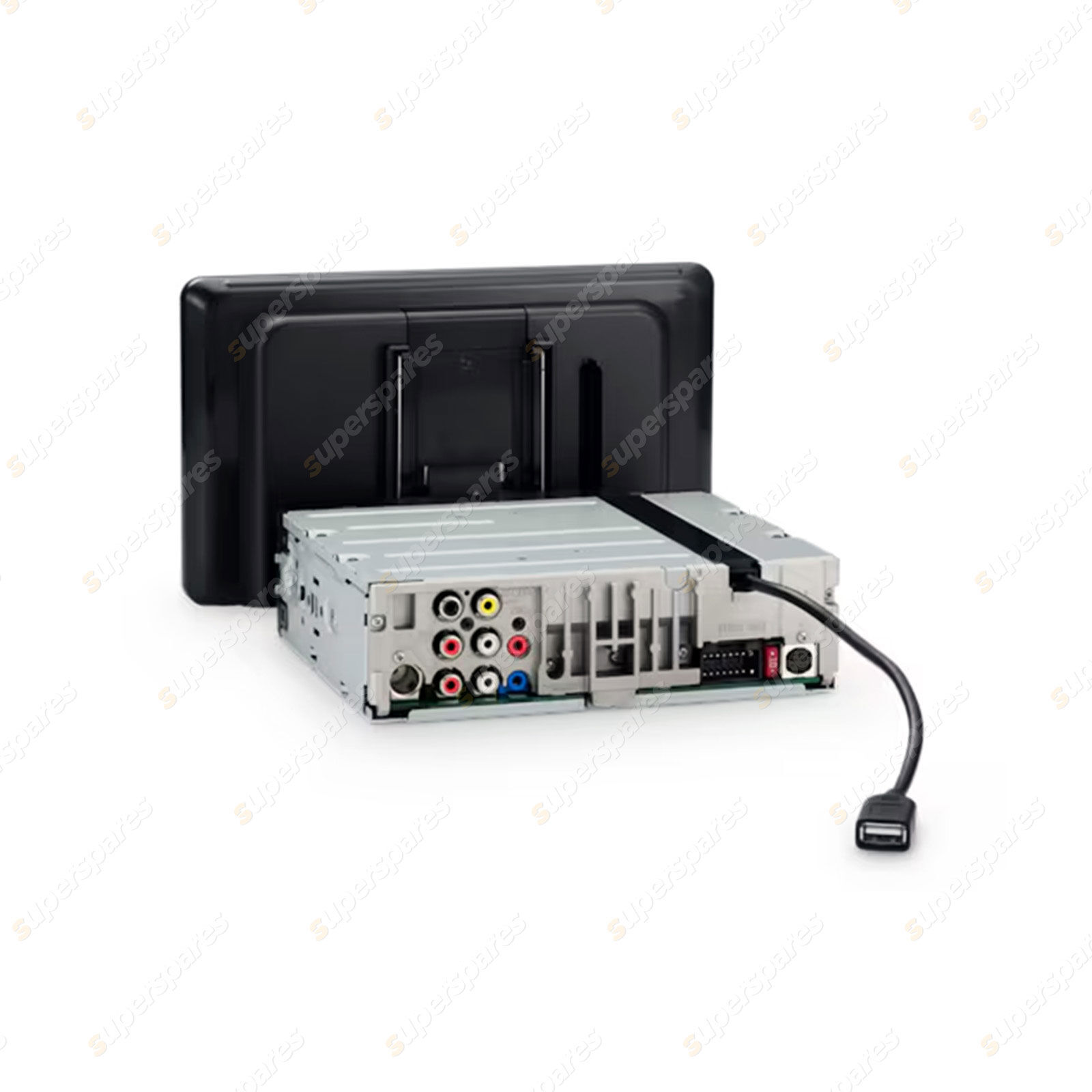

Build your own sound system

With the three 5x volt pre-outs, you can add components of your choice, like extra amplifiers and subwoofers.

Rear view camera ready

Have a rear camera installed? View its feed through the screen, along with customisable guidelines that help you back in safely.

FLAC compatible

FLAC compatibility lets you play lossless audio files, so you can enjoy every detail of the music.

Quick Wake up

With Sony Quick Wake Up, you're ready to go right after turning on the ignition.

BLUETOOTH® wireless technology

Make hands-free calls and stream wireless audio from your smartphone, with Bluetooth®.
