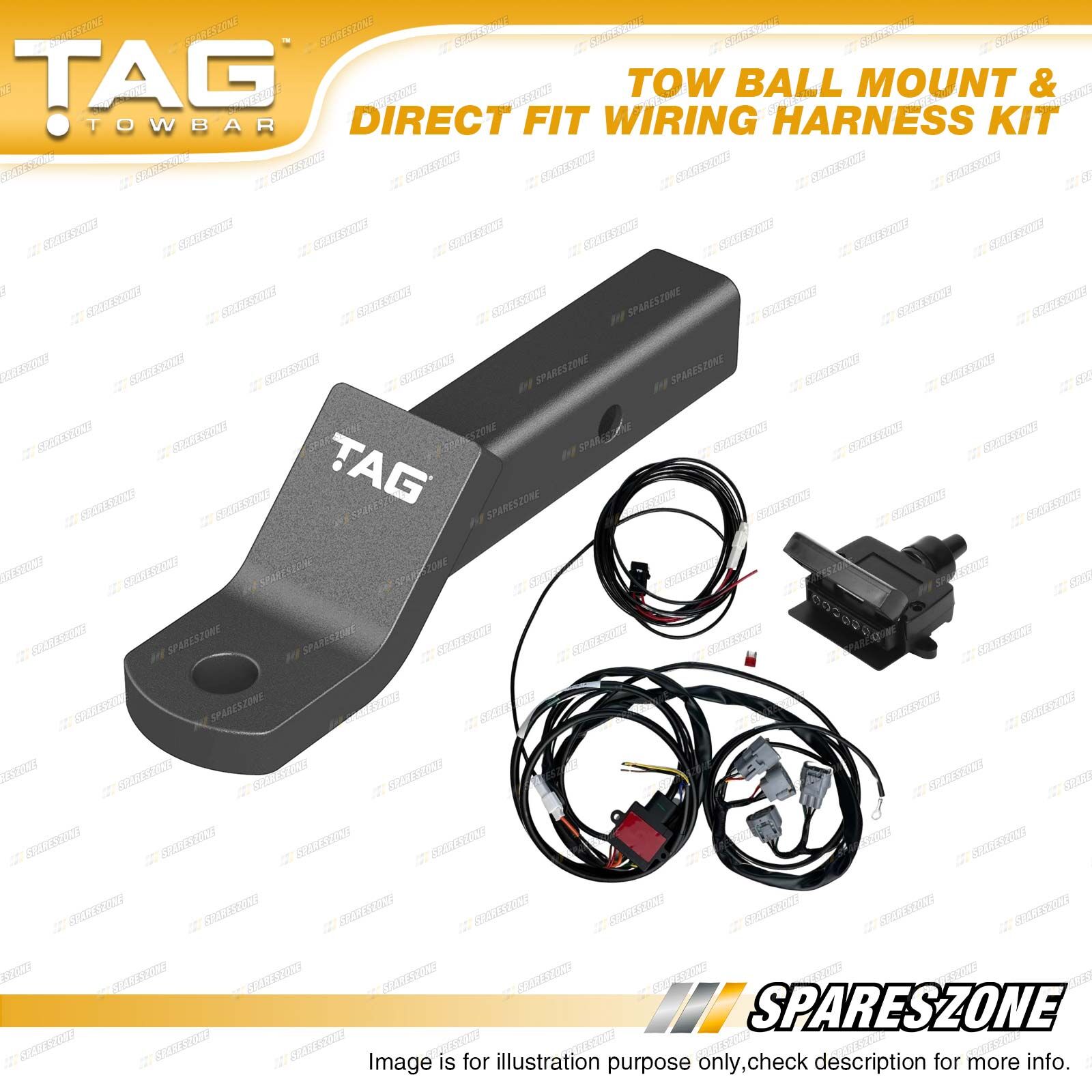

TAG Tow Ball Mount Kit for Toyota Hilux GGN 120 125 135 GUN 125 126 136 KUN TNG

Reverse Sensor Cut Off: Automatic

Fitting Time Approx: 1 hr

Diagnostic Coding: Not Applicable

Fog Cut Off: Automatic

Wiring Option: Direct Fit ECU

Material Type: Zinc Plated

Type: Plugs & Sockets

Style: 7 Pin Flat

Tow Ball Mount Class: Heavy Duty Class 4

Gross Trailer Weight: 3500kg

Ball Weight: 350kg

Hitch Type: Heavy Duty 50mm Square

Drop: 18mm

Rise: Can be used in Drop or Rise mode

Length: 338

Length (Pin To Ball): 208mm

Front to Pin: 250mm

Back to Pin: 90mm

Tongue Face: 135 Degree

Coating: Powder Coated

TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

• 208mm Long (Hitch Pin Hole to Tow Ball Hole)
• 135 Tongue Face
• Drop: 0mm
• Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
• 3500kg Gross Trailer Weight
• 350kg Ball Weight
• Durable Powder-Coated Finish
• ADR 62/02 Compliant
• TAG Limited Lifetime Warranty
• Tow Ball sold separately.

Located in South-East Queensland, the TAG Manufacturing Facility is the home of TAG 50mm hitch towbar development and production.The engineering team researches, designs and manufactures our powdercoated towbars for distribution and sale across Australia.TAG towing has one of the largest range of towbars and wiring solutions that covers over 90% of vehicles on the road in Australia.With a nationwide dealer network you have the peace-of-mind knowing that wherever your travels take you, you can be confident that we are behind you.
