Product Description

Contents : 1 x Sony 10.1" Digital Media Receiver with HDMI

Description :

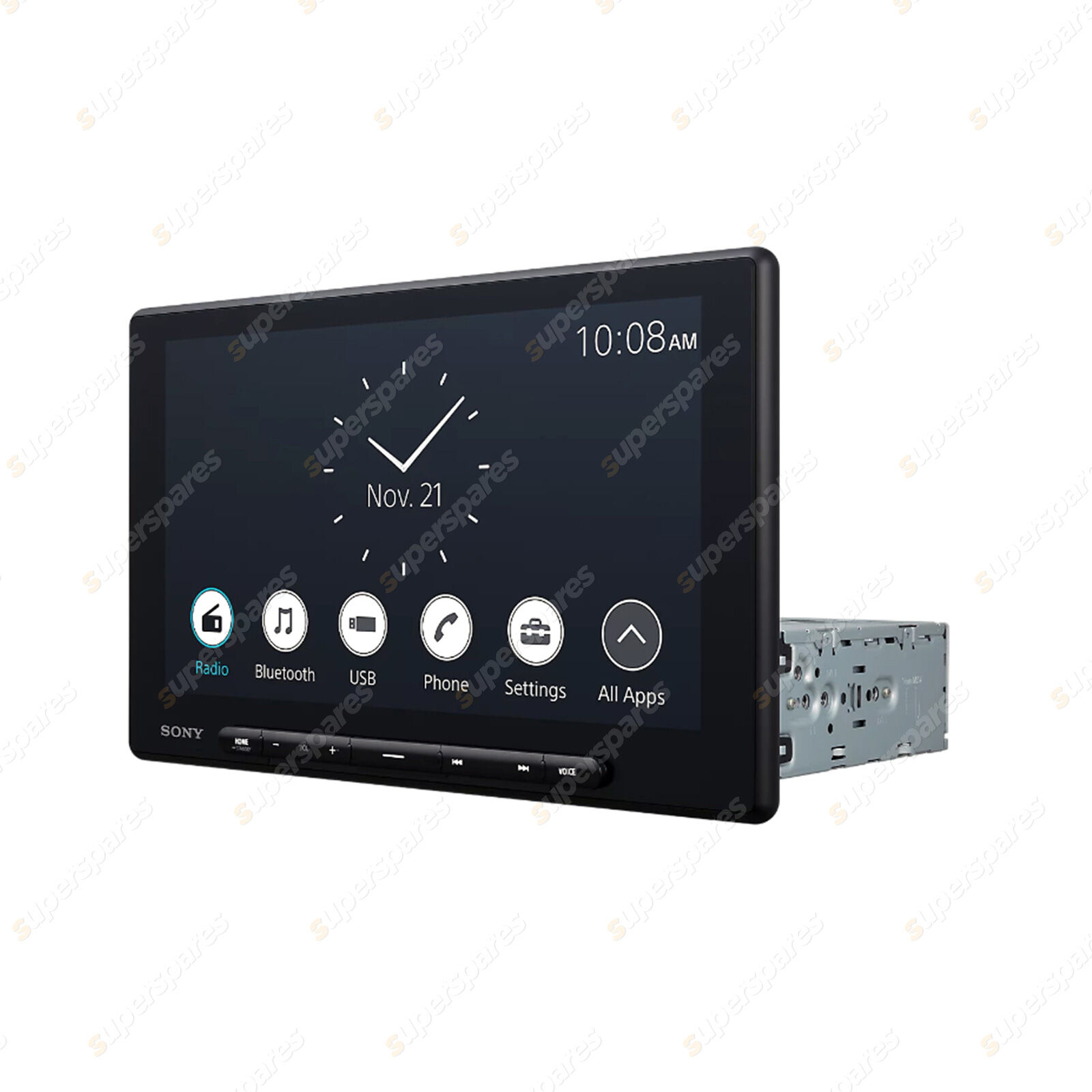

The XAV-AX8500 digital multimedia receiver features a 25.7 cm (10.1 inch) capacitive HD touchscreen with an updated display joint featuring a new tilt and swivel mechanism. Together with both wireless and wired connectivity to your smartphone and various devices, and sound customisation, it offers a safe and enjoyable driving experience.

Specifications :

Size & Weight

DIMENSIONS (W X H X D) : 269 x 167 x 258 mm
WEIGHT : 2.6 kg

General Features

ALBUM ARTWORK INDICATION : Yes
EQUALIZER : 14-band Equalizer
FIRMWARE UPGRADABILITY : Yes
OUTPUT POWER : 55W x4
PRE OUT : 5V 3-Pre (Front LR / Rear LR / Sub x 1)
REAR VIEW CAMERA IN : Rear/Input 1/Input 2
TIME ALIGNMENT : Yes
USB : Yes (Type-C x 1, REAR)

Tuner Features

AUTO MEMORY : BTM
PRESET : FM18/AM12
RDS / EON : Yes (RBDS)

Bluetooth® Profile

A2DP : Yes (1.3.1)
AVRCP : Yes (1.6.1)
HFP : Yes (1.7.1)
PBAP : Yes (1.1)

Bluetooth® Feature

ALPHABETICAL PHONEBOOK SORTING : Yes
BATTERY REMINDER : Yes
CALL VOLUME LEVEL CONTROL : Yes
EXTERNAL MICROPHONE : Supplied
LAST DIALED CALL : Yes(select from the dialed call history)
PHONEBOOK ACCESS VIA PBAP : Yes
RECENT CALLS (# OF) : Yes
RING VOLUME LEVEL CONTROL : Yes
SIGNAL STRENGTH INDICATION : Yes
SPEED DIAL : Yes (6 memories)

Bluetooth® Audio Feature

AUDIO CODEC (BLUETOOTH AUDIO) : SBC/AAC/LDAC
AUDIO LEVEL ADJUSTMENT : Yes (-6dB to +6dB)
CUE / REV : Yes
GROUP (FOLDER) +/- : Yes
META DATA INDICATION : Yes
PAUSE (BLUETOOTH AUDIO) : Yes
REPEAT CONTROL (AUDIO DEVICE SIDE) : Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE) : Yes
TRACK +/- : Yes

Panel Design

KEY ILLUMINATION : Yes (White)

Monitor(AVC)

BRIGHTNESS : 425 cd/m2
DIMMER : Auto/Manual select
LCD TYPE : TFT Active Matrix
RESOLUTION (DOT) : 1280 x 720
SCREEN ASPECT : 16:9
SCREEN DIAGONAL (INCH / CM) : 10.1 inches / 25.7 cm

Display Panel

DIMMER ADJUST : Yes

User Interface

PARKING CONTROL : Yes
PARKING LINE ADJUST : Yes
REAR VIEW CAMERA-IN MARKER SETTING : Yes
TOUCH PANEL : Yes/Capacitive

USB Mass Storage Device Control Feature

USB DEVICE CONTROL (AUDIO CODEC) : MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) : .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
USB DEVICE CONTROL (PAUSE) : Yes
USB DEVICE CONTROL (REPEAT) : TRACK/FOLDER/DRIVE
USB DEVICE CONTROL (RESUME PLAY) : Yes
USB DEVICE CONTROL (SHUFFLE) : OFF/FOLDER/DEVICE
USB DEVICE CONTROL (VIDEO CODEC) : ASF/WMV/AVI/MKV/MPEG-4
USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION) : .asf/.wmv/.avi/.mkv/.mp4

Multi-Language

CAUTION : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
MENU : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

What's In The Box : Connection Cables(Audio/Camera) / External Microphone / GPS Antenna / Power Supply Leads / Remote Commander / USB Extension Cable(Type-C)

Features :

Oversized high-definition display

A large floating 25.7 cm (10.1 inch) capacitive touchscreen with 1280 x 720-pixel high resolution offers crisp detail, higher brightness and contrast for superior in-car experience.

Gapless Anti-glare Display

Unlike a conventional display, the LCD is bonded directly to the protective glass touch layer with a transparent adhesive. The result is an extremely precise touch experience along with enhanced contrast and visual performance. The internal anti-glare filter hugely improves touchscreen visibility by reducing sunlight reflections, ensuring easier and safer driving.
LEFT image : Display device with no anti-glare filter.
RIGHT image : Display device with anti-glare filter.

Easily adjustable tilt and swivel

The newly designed tilt and swivel mechanism lets you manually adjust the oversized high-definition display's viewing angles. The display joint's screw-less structure gives you a range of ±15 degrees, both horizontally and vertically, with no tools required - even after installation.

HDMI Input

HDMI connectivity allows you to hook up an external audio and visual source device or a compatible smartphone, so you can view your favourite content when your car is parked.

Fully wireless smartphone connectivity

Thanks to a Wi-Fi® connection to your smartphone, together with the supplied GPS antenna, you can use voice control to navigate, communicate and play music on the road even with your device in your pocket

Sound customisation

The built-in DSP offers sound processing and time alignment¡ªdown to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste, and with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.

LDAC™ for exceptional sound quality

Enhanced wireless audio streaming with LDAC
Enjoy the convenience of Bluetooth® wireless audio and exceptional sound quality thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.

3-camera trigger inputs

You can see the images of up to three connected cameras when you shift the vehicle's transmission lever to the reverse position or tap the dedicated icons on the home screen. By utilising the supplied trigger wires, each camera image can be switched on and off, or from one to another automatically by detecting the vehicle's turn signals or sensing compatible signals such as that for a connected front camera. An adjustable parking guide is also available for reverse gear.

HD Graphical User Interface

The 1280 x 720 HD touchscreen offers an enhanced user interface for safety and ease of use. It features a clean design with customisable icon positioning and wallpaper to suit your vehicle and style.

Quick Wake-up

With the Quick Wake-up feature, you're ready to go right after turning on the ignition.

Simple button controls with intuitive design

Safer, easier operation
The button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.

Easy installation, with a compact main chassis

Single-DIN chassis for your flexible installation
Despite its huge screen, the main unit is packed in a single-DIN chassis for flexible installation in both single and double-DIN dashboards, while still leaving plenty of room for cables and harnesses when installed in double-DIN vehicles.

Environment in mind

Our products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XAV-AX8500, 90% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 80%, reflecting Sony's commitment to reducing environmental impact.
